Maintenance boxes for the car roof
The inspection control station fitters use to move the car from the roof. It must be reachable from the refuge space, protected against unintentional operation, and carry the STOP device close to the access point.
27 designs · 5–10 device openings
What EN 81-20 requires at this location
- The inspection control station must be operable from the refuge space at a horizontal distance of no more than 0.30 m.
- The STOP device is easily reachable and no more than 1 m from the access point for maintenance personnel.
- A socket outlet is part of the equipment on the car roof.
- The UP and DOWN direction pushbuttons, the RUN button and the bistable inspection switch are protected against unintentional operation.
Matching designs
KEB-B6A001
6 openings
KEB-B

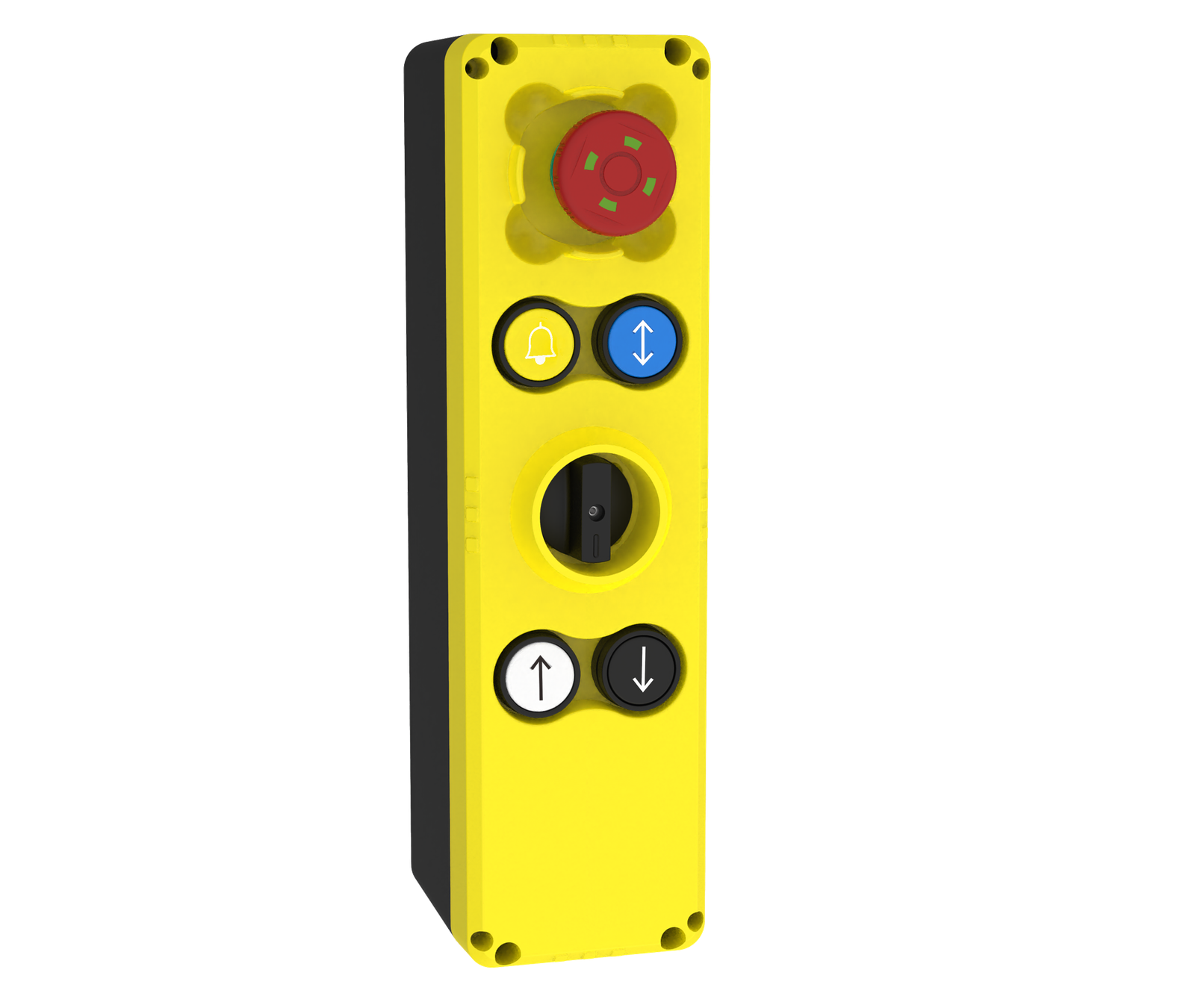

KEB-B6A002
6 openings
KEB-B
KEB-B7B001
7 openings
KEB-B
KEB-B7B002
7 openings
KEB-B
KEB-B7B003
7 openings
KEB-B
KEB-B7D001
7 openings
KEB-B
KEB-B8C001
8 openings
KEB-B
KEB-BS6A001
6 openings
KEB-B
KEB-BS7B001
7 openings
KEB-B
KEB-BS7B002
7 openings
KEB-B
KEB-BS7B003
7 openings
KEB-B
KEB-BS8C001
8 openings
KEB-B

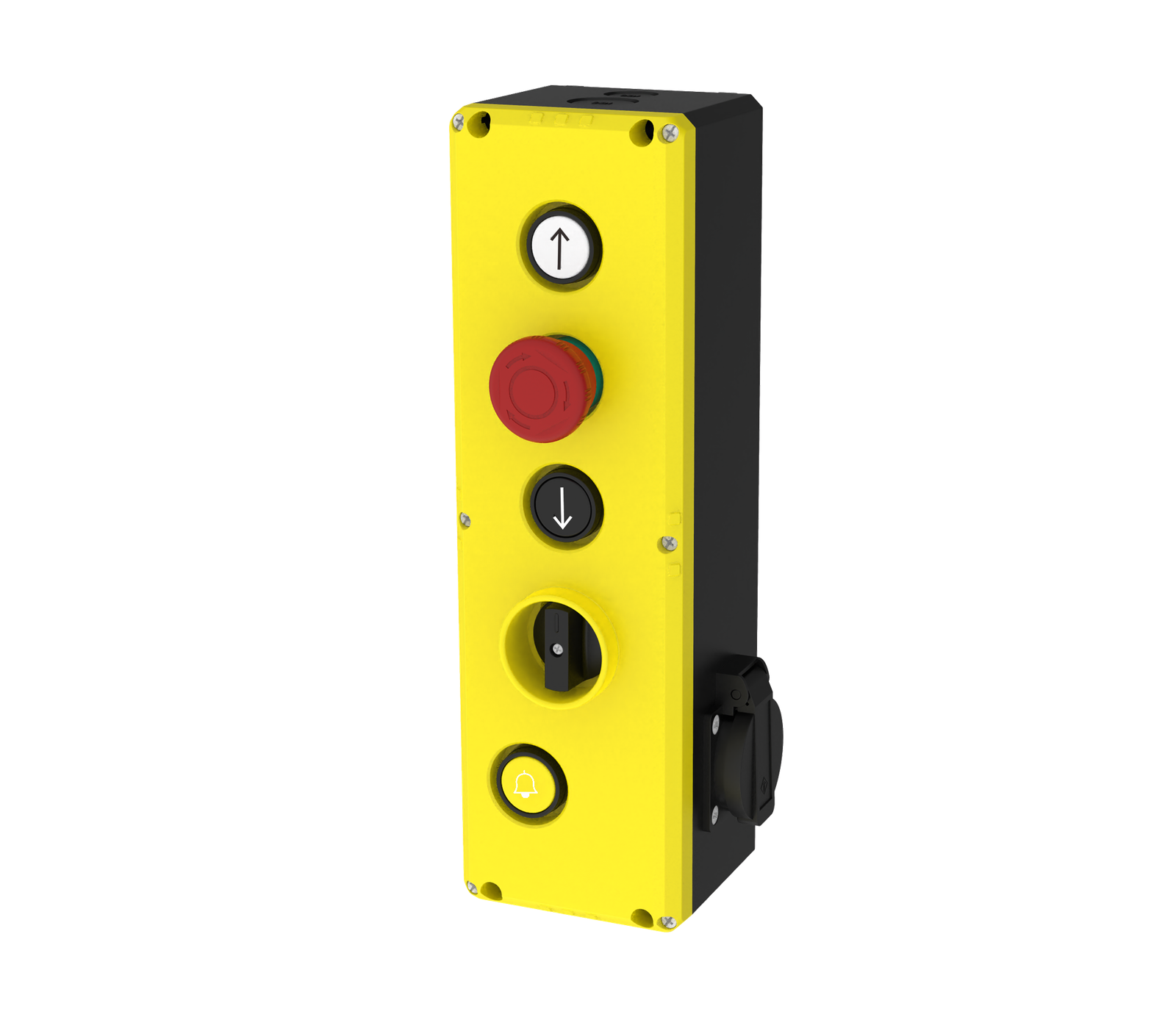

KEB-C5A001
5 openings
KEB-C

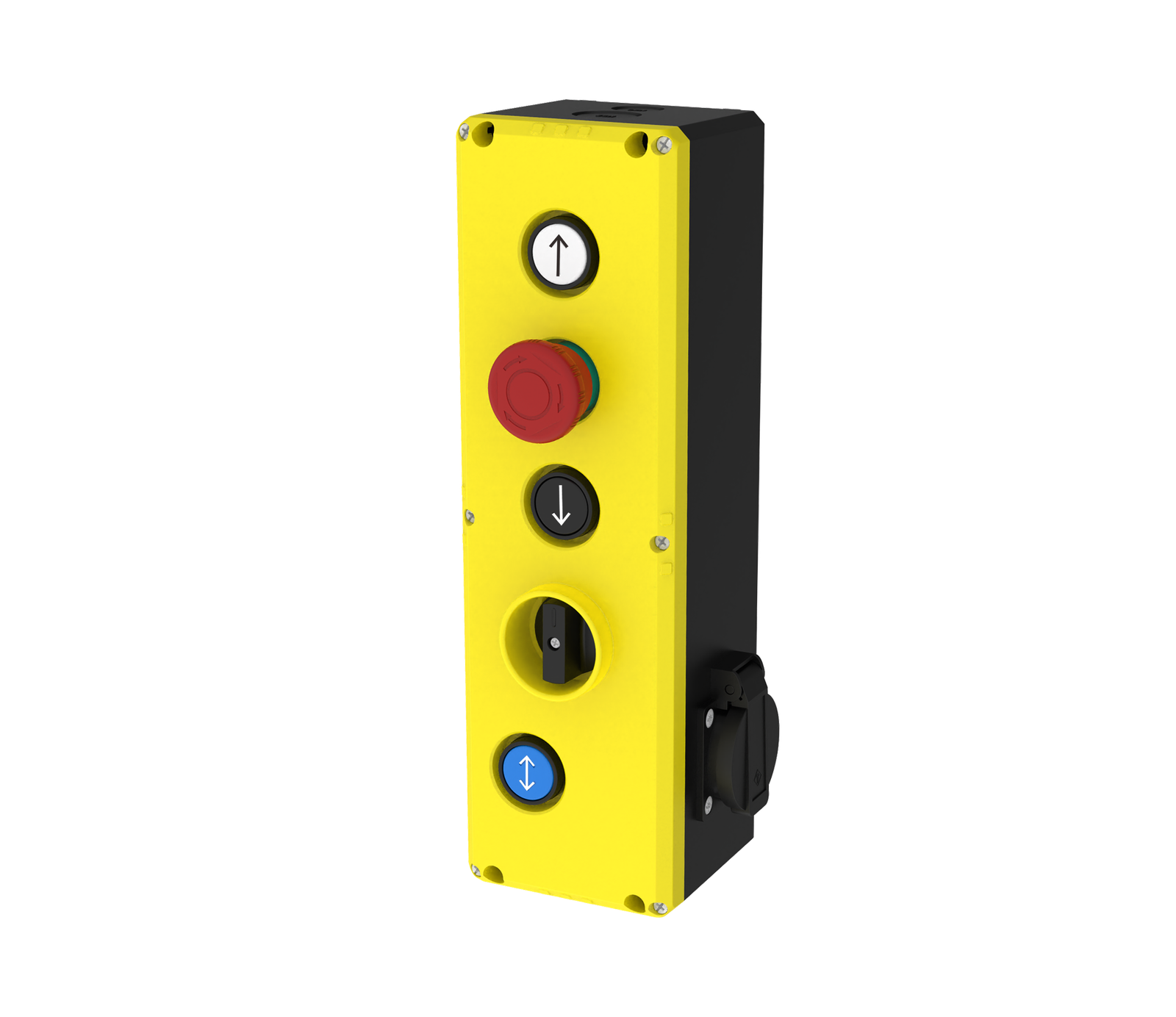

KEB-C5A002
5 openings
KEB-C

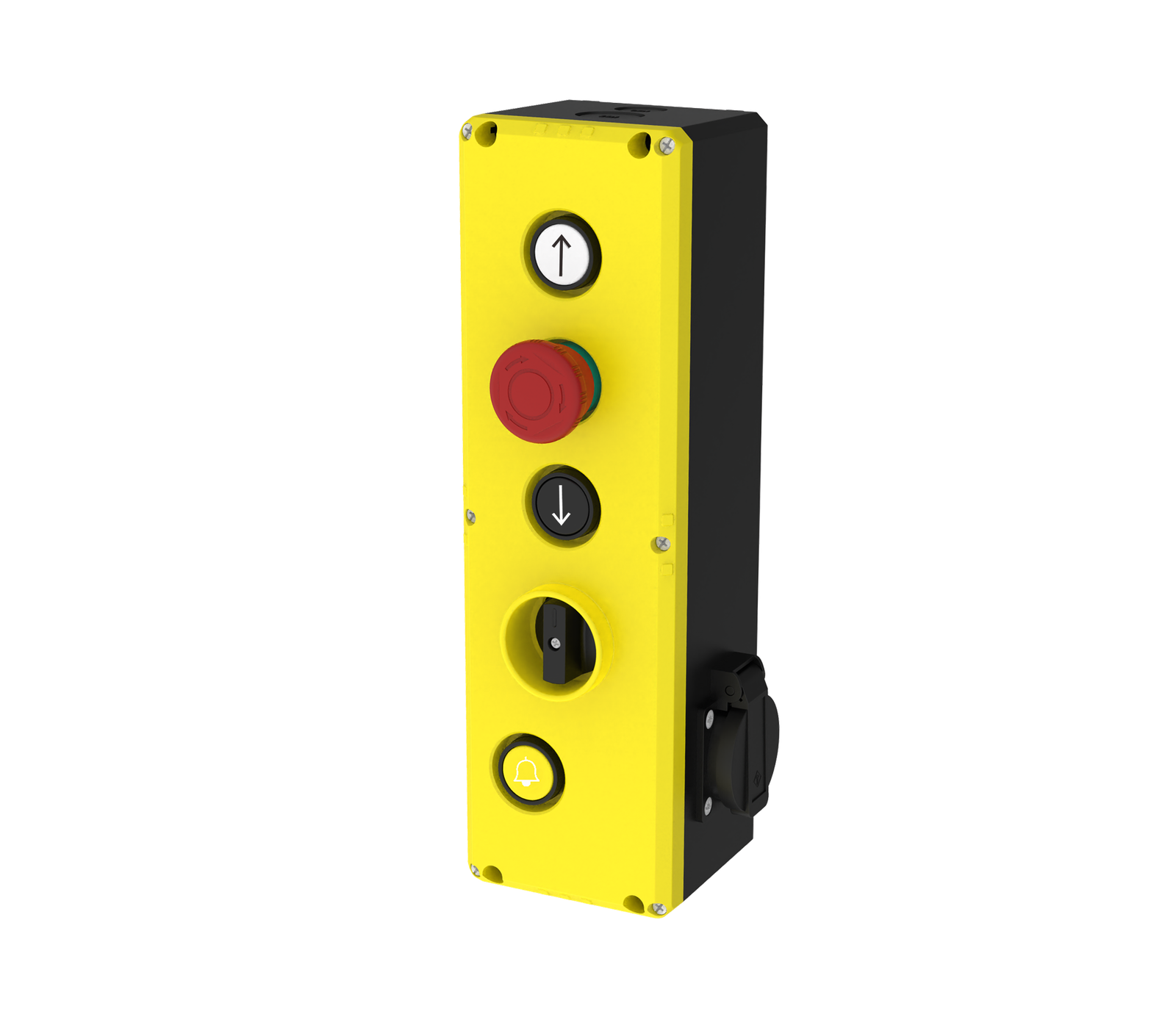

KEB-C5A003
5 openings
KEB-C

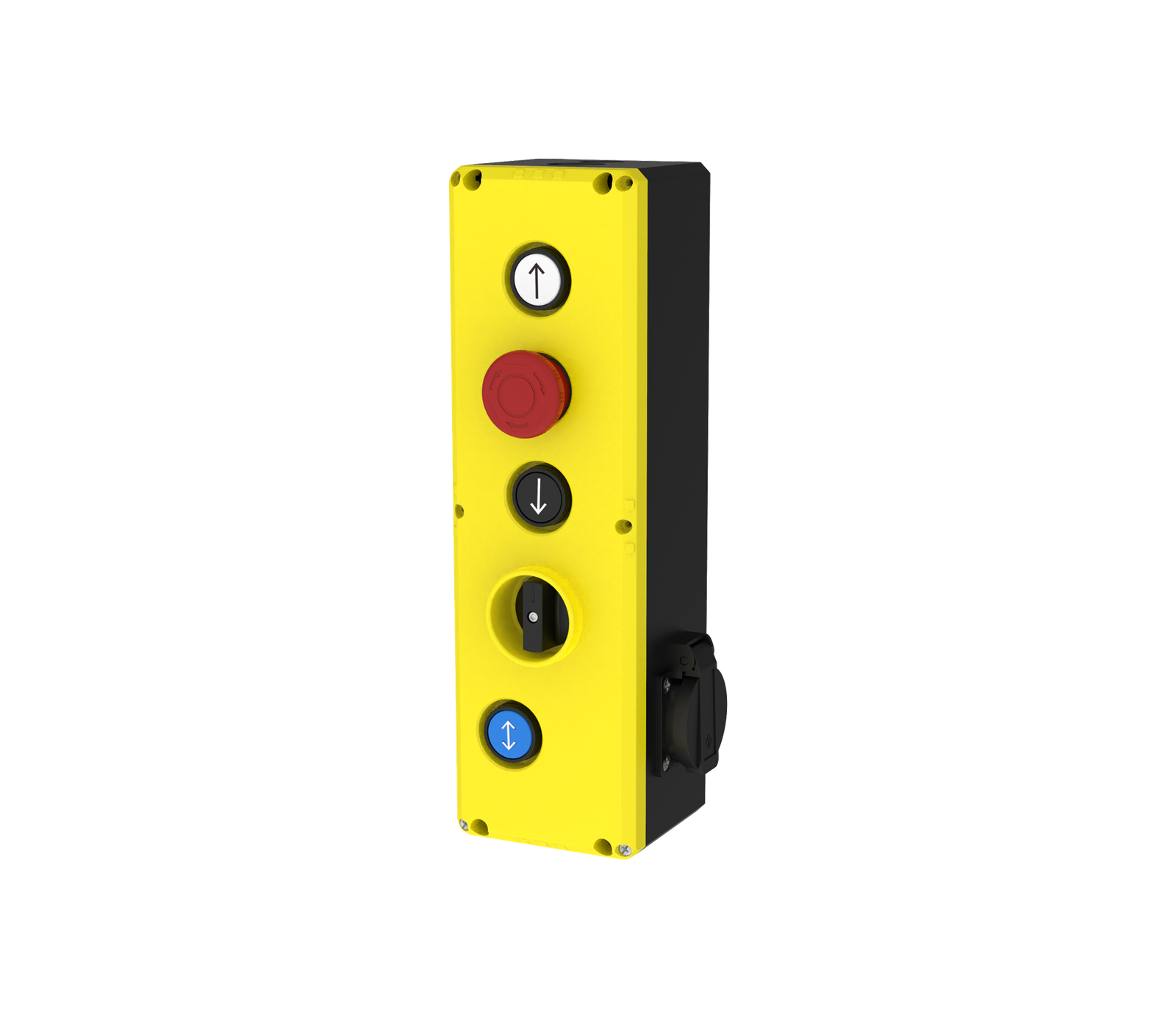

KEB-C5A004
5 openings
KEB-C

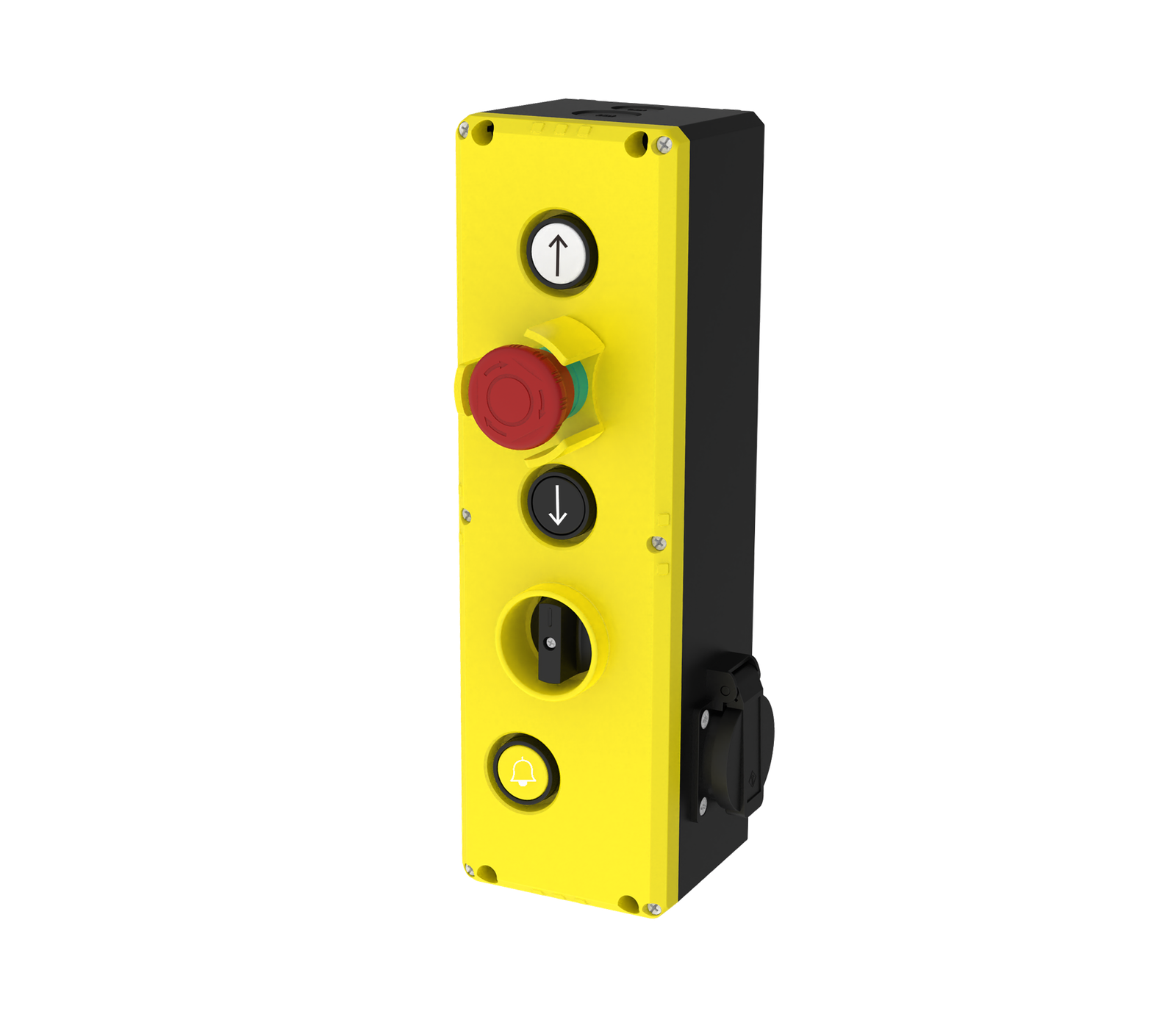

KEB-C5B001
5 openings
KEB-C

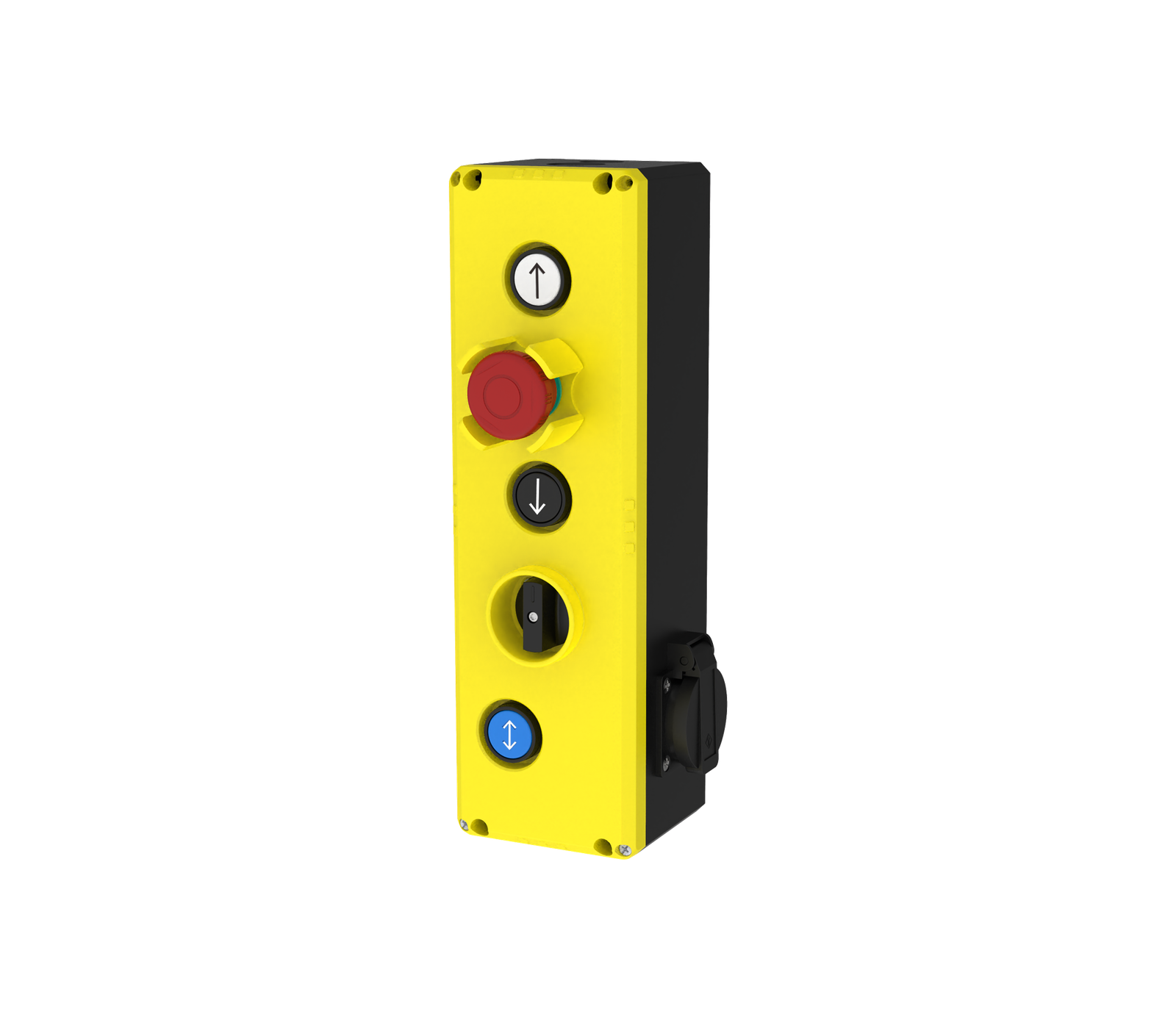

KEB-C5B002
5 openings
KEB-C

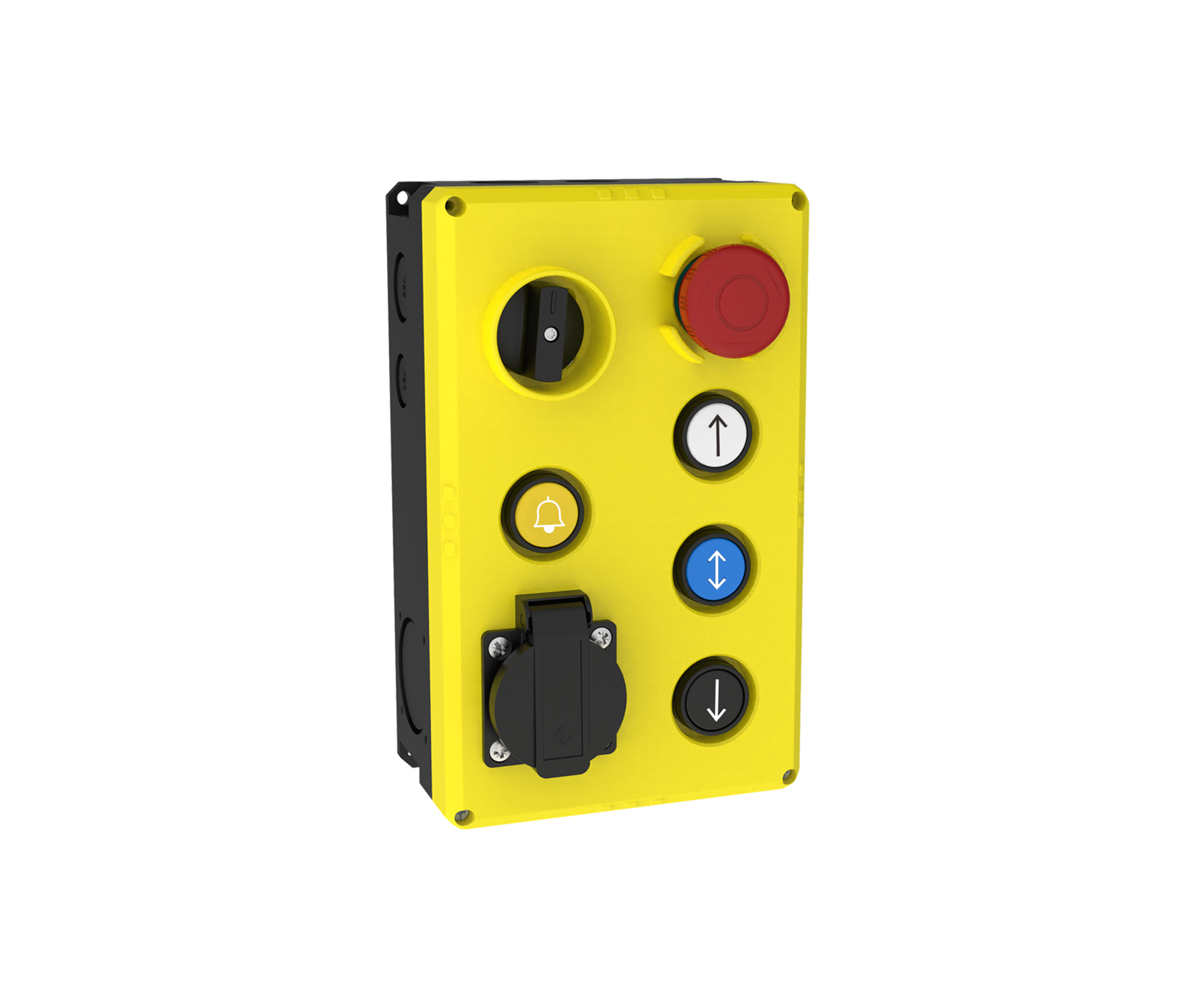

KEB-F7A001
7 openings
KEB-F

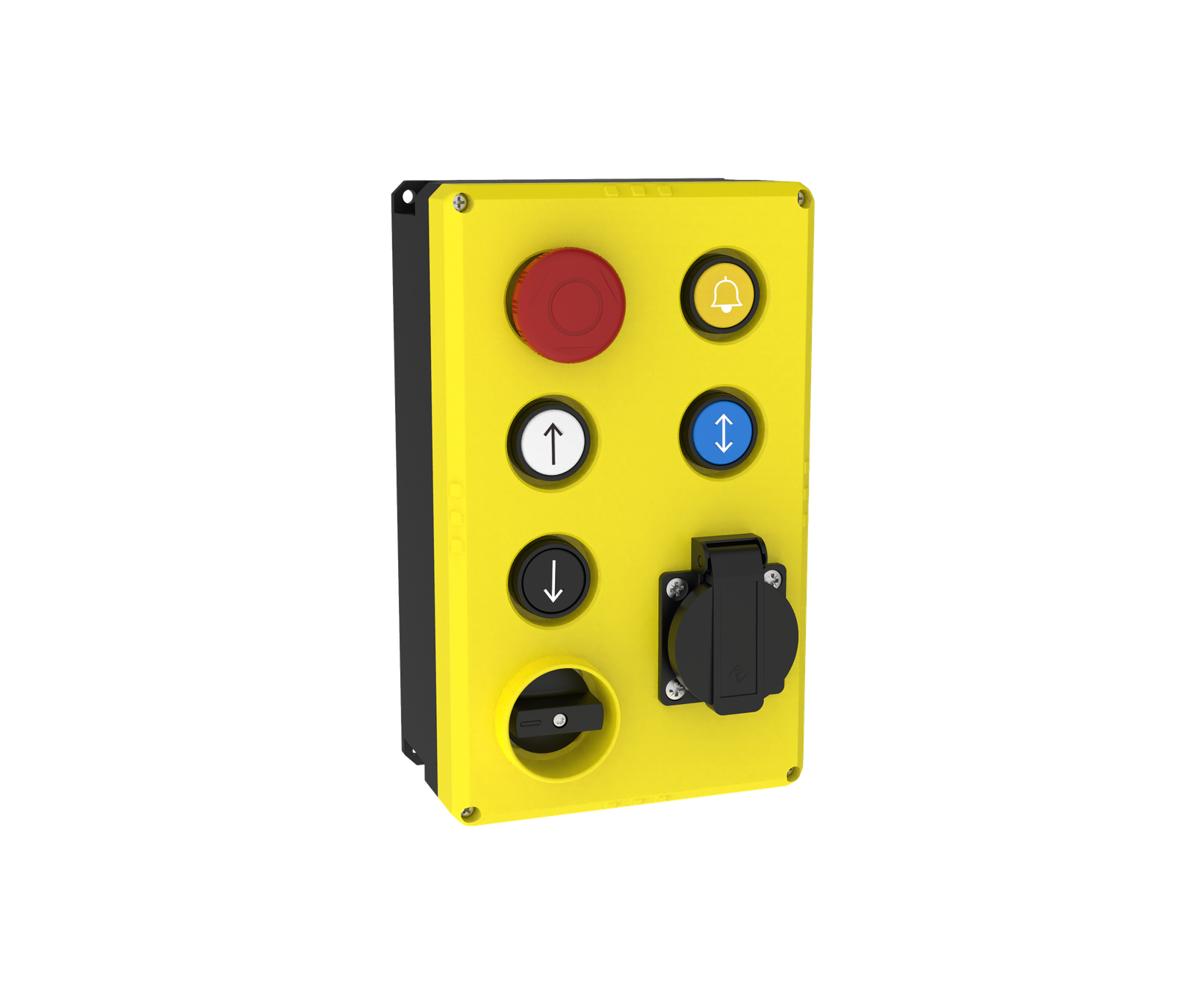

KEB-F7B001
7 openings
KEB-F

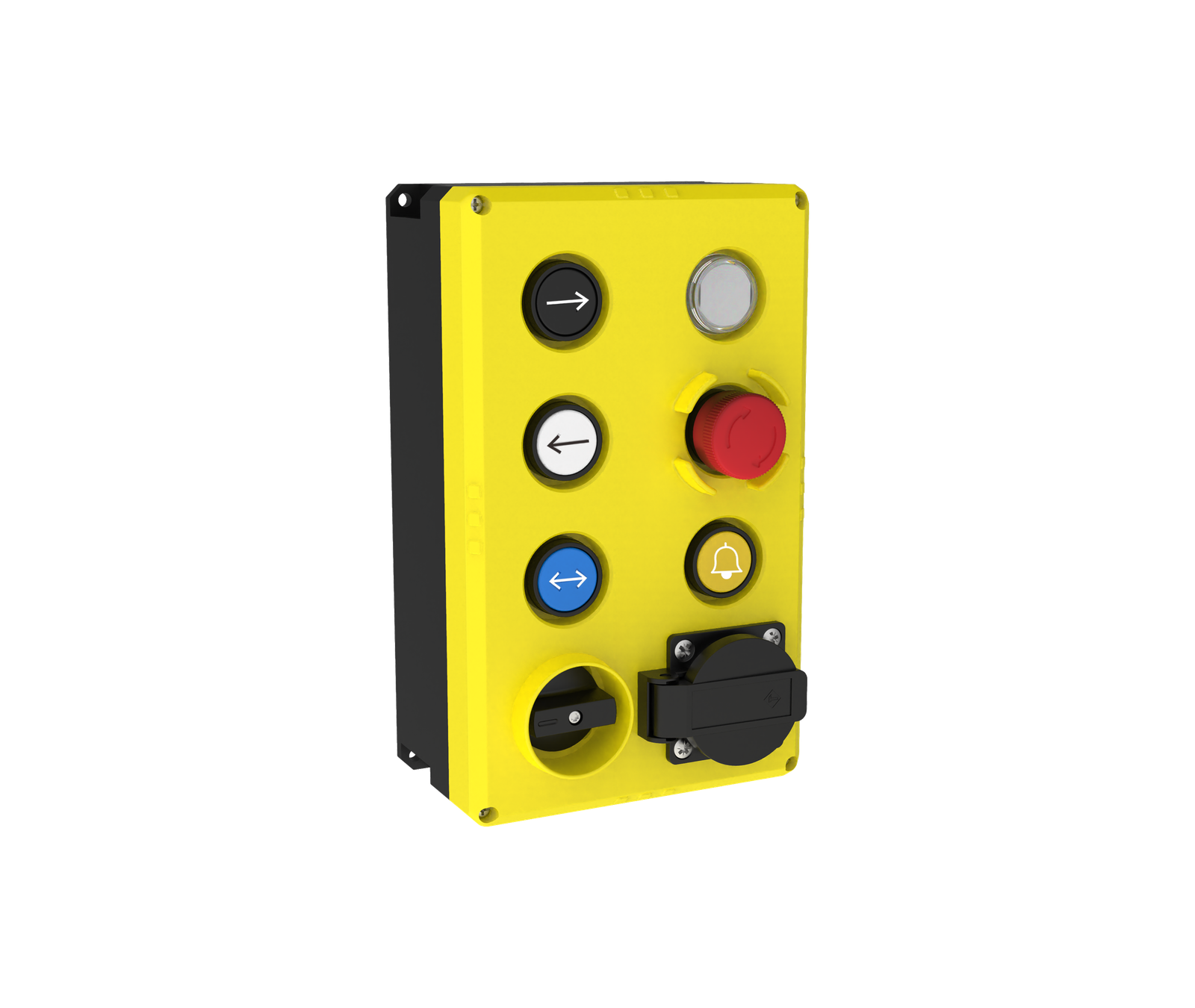

KEB-F8A001
8 openings
KEB-F

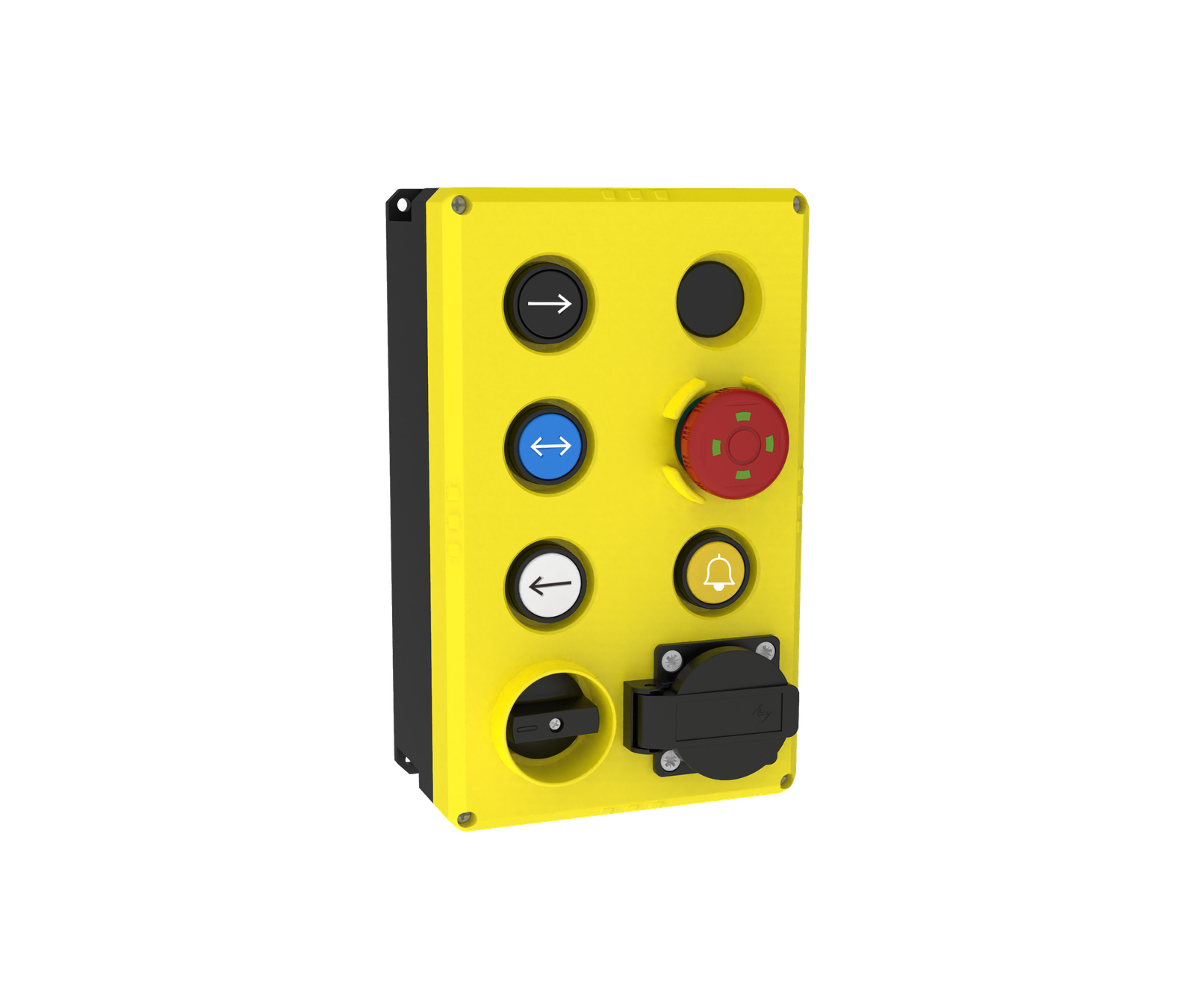

KEB-F8A002
8 openings
KEB-F
KEB-F8A003
8 openings
KEB-F

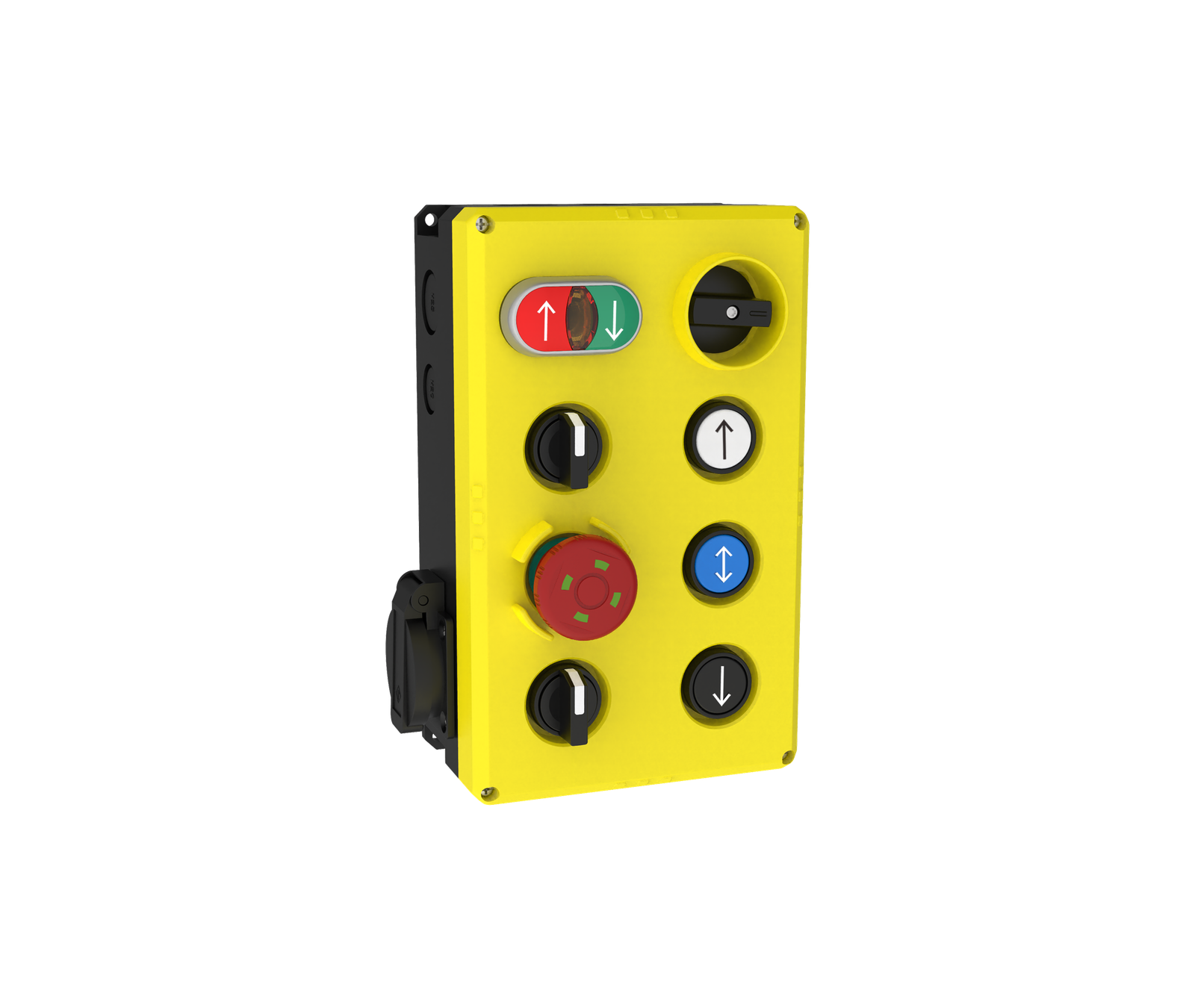

KEB-F8B001
8 openings
KEB-F

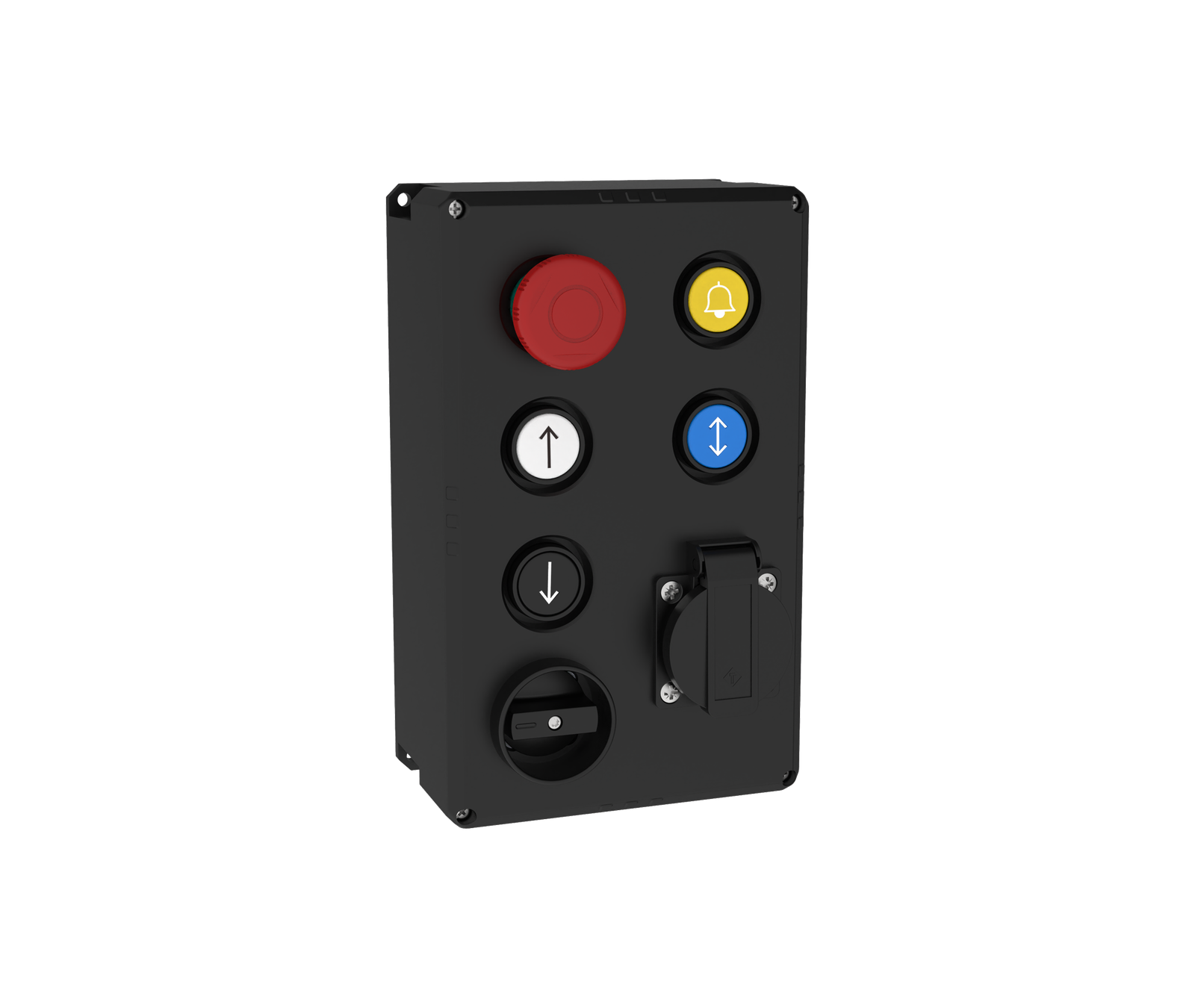

KEB-KF7B001
7 openings
KEB-KF

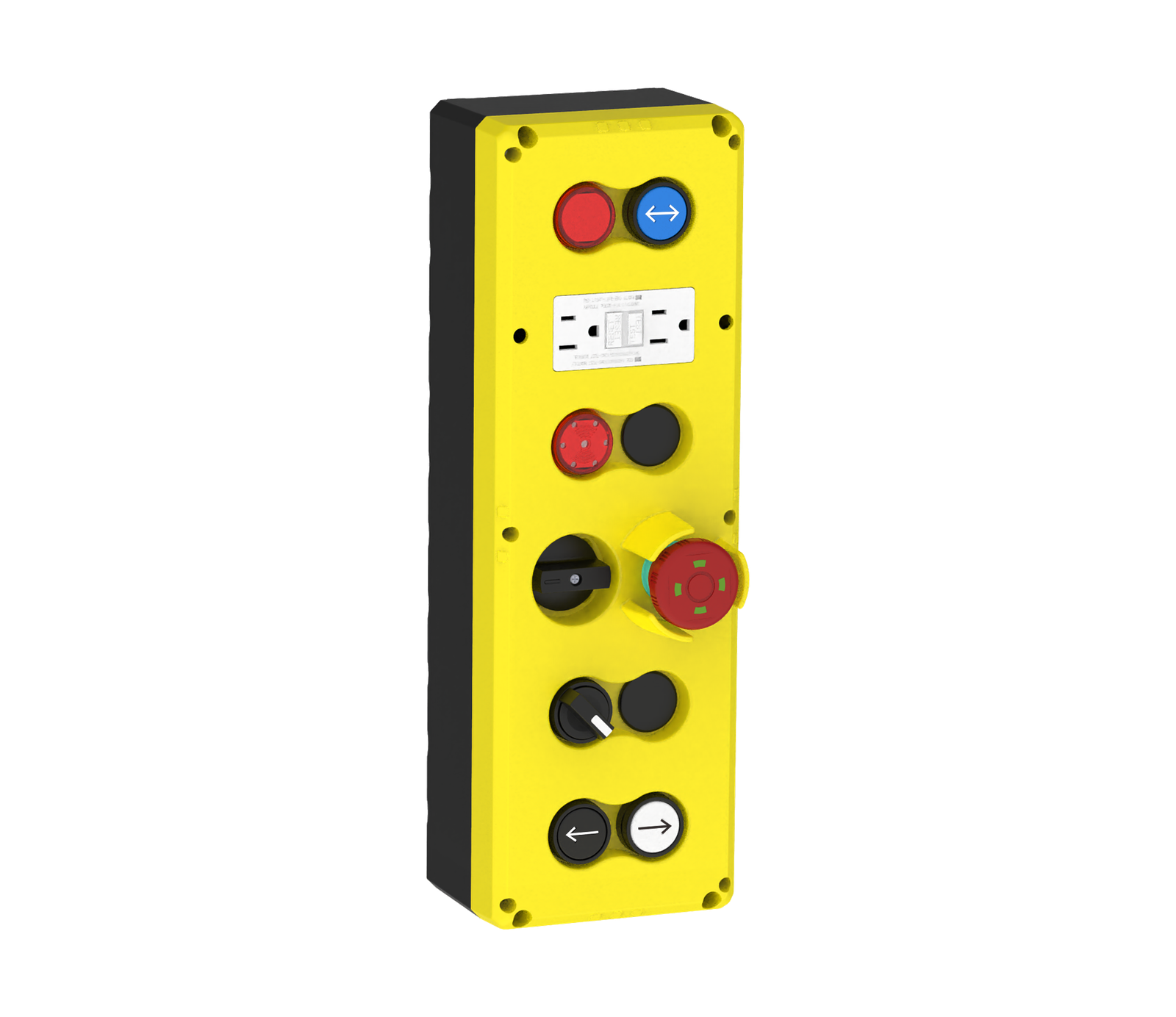

KEB-U10A001
10 openings
KEB-U

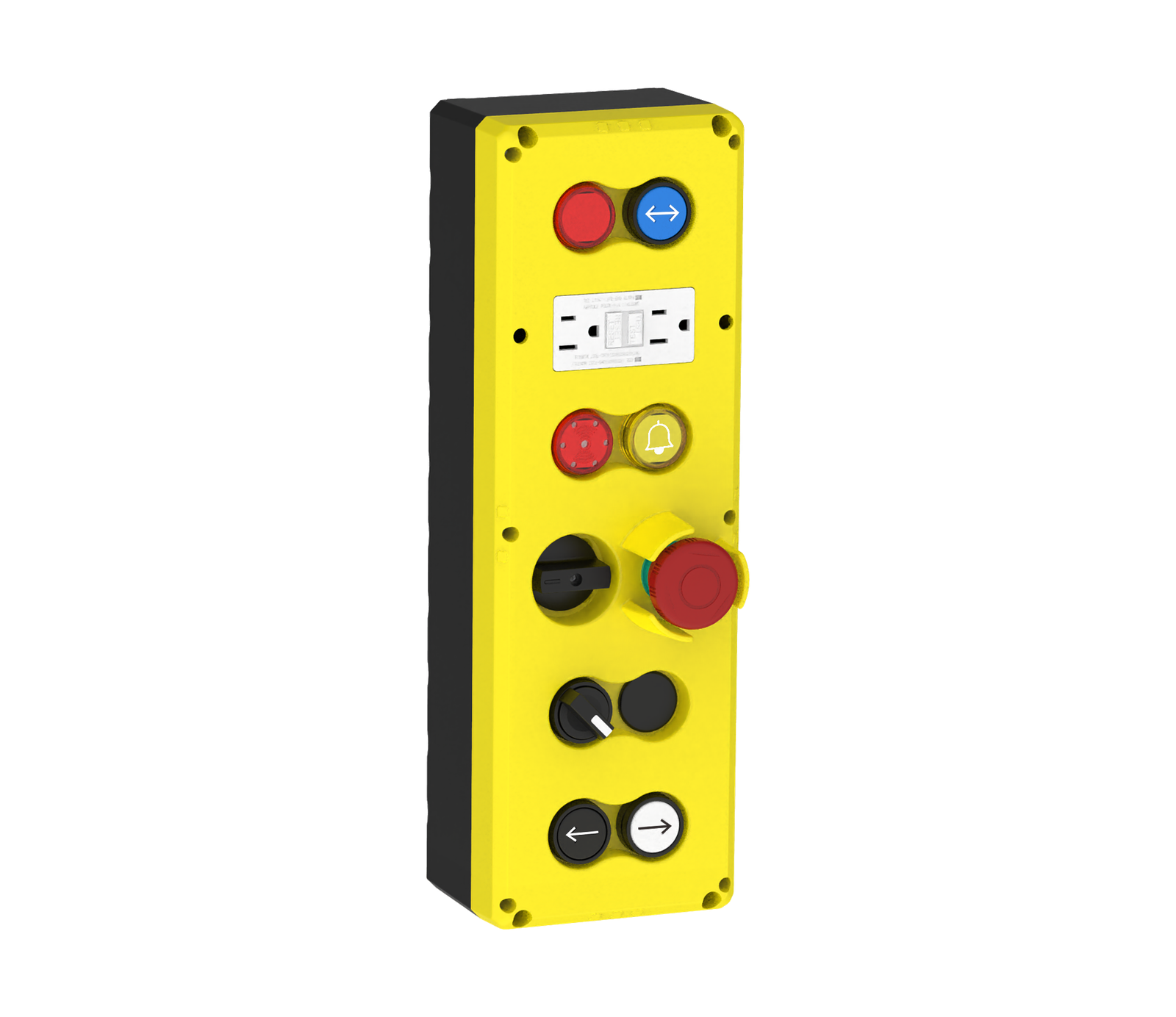

KEB-U10A002
10 openings
KEB-U
Other installation locations
Pit
The permanently installed control station at the bottom of the shaft. It must be operable from the refuge space and, alongside the STOP device and socket outlet, must also provide the well lighting switch within reach of the access point.
Control panel
Operating and bridging devices in the control cabinet or at the test panel — where door contacts are bridged for maintenance and operating modes are switched.
