1. Choose the mounting location
Compare the available models for the car top, pit bottom or panel board.
Lift Industry
Lift and elevator inspection control stations
KEB maintenance and inspection stations for the car top, pit and panel board. Select the mounting location, enclosure, fittings and socket type for your project.
Overview
Key features at a glance
- Flexible, high-quality construction
- Ergonomic design
- Laser-engraved interfaces (EN 81-20 / EN 81-50)
- High-quality materials
- Contact elements tested to EN 60068-2-6 / -2-27
- Contact blocks (NO-NC-NO) with screw and push-in terminals for maximum comfort — HQ push-in stackable, up to 4 contacts per pushbutton
01
Designed to EN 81-20 / EN 81-50
Control stations for inspection and maintenance in lift installations.
02
Tailored housings & covers
Fully customisable housings matched to devices, layouts and applications.
03
Laser marking technology
Permanent laser engraving for text, symbols and customer logos.
New · Push-in contact blocks
KEB boxes with new push-in contact blocks.
HQ-01PI and SD-01PI (NC), HQ-10PI and SD-10PI (NO): wire them in, then click them onto the HQ-BI base. Stack two HQ push-in blocks for up to four contacts per pushbutton.
By Installation Location
Where in the shaft should the box go?
EN 81-20 sets different requirements at each place in the shaft. Choose the installation location — we show the matching designs and what the standard requires there.
Car roof
The inspection control station fitters use to move the car from the roof. It must be reachable from the refuge space, protected against unintentional operation, and carry the STOP device close to the access point.
27 designsPit
The permanently installed control station at the bottom of the shaft. It must be operable from the refuge space and, alongside the STOP device and socket outlet, must also provide the well lighting switch within reach of the access point.
36 designsControl panel
Operating and bridging devices in the control cabinet or at the test panel — where door contacts are bridged for maintenance and operating modes are switched.
19 designs Selection guide
How to choose the right lift maintenance box
Start with the mounting location and required controls. Then select a suitable housing, control devices and power socket.
2. Define the configuration
- Housing size and number of device openings
- Required buttons, switches, indicators or signal devices
- Power socket type or a version without a socket
3. Prepare your enquiry
- Application and mounting location
- Required configuration and socket type
- Required quantity
Selection and retrofit
Request KEB selection support
Match KEB stations and components with confidence
Whether you are specifying a new KEB station or replacing an existing assembly, the function, contact arrangement, connection method and mounting situation must match. The model designation is the best starting point; for retrofits, photographs, dimensional drawings and existing labels provide valuable confirmation.
Which option suits your project?
| Option | Typical use | Check before selecting |
|---|---|---|
| Screw terminals | Established connection method for new assemblies or replacements within an existing wiring concept. | Verify conductor type and cross-section against the datasheet for the selected component. |
| Push-in terminals | Replaces any screw-terminal contact block. HQ push-in blocks are stackable (up to 2): up to 4 contacts per pushbutton. | Verify conductor type and cross-section against the datasheet for the push-in block. |
| Replacing a fitted station | Replacement of an existing KEB station or individual components where the fitted devices are documented. | Compare NO/NC contact functions, circuit diagram, cut-outs, mounting depth, button construction and socket version. |
Frequently asked questions about KEB selection
Which KEB series is available as an empty enclosure?
Only the KEB-A series is offered as an empty version. Other KEB series are selected as complete, fitted stations.
Can screw terminals simply be replaced by push-in terminals?
Yes. Every screw-terminal contact block can be replaced with the new push-in contact block solution. Choose the push-in block with the same contact function: NC (HQ-01PI, SD-01PI) or NO (HQ-10PI, SD-10PI).
How many push-in contacts can an HQ pushbutton carry?
Up to four: the HQ-01PI (NC) and HQ-10PI (NO) push-in contact blocks stack two high. The right mix of NC and NO contacts depends on your circuit diagram.
How do I choose the power socket?
Select the KPS version for the destination market and application. If no mains outlet is needed, an existing station option without a socket can be specified.
What information is needed to replace an existing station?
The most useful details are the KEB model code, mounting location, photographs, circuit diagram or NO/NC arrangement, connection method, socket, dimensions, labelling and quantity. Custom laser engraving can be agreed at the same time.
Request a technical match
Send us the information available. We will match the station, fitted devices and labelling for your enquiry.
Key Facts & Highlights
Safety, durability and flexibility for demanding inspection environments

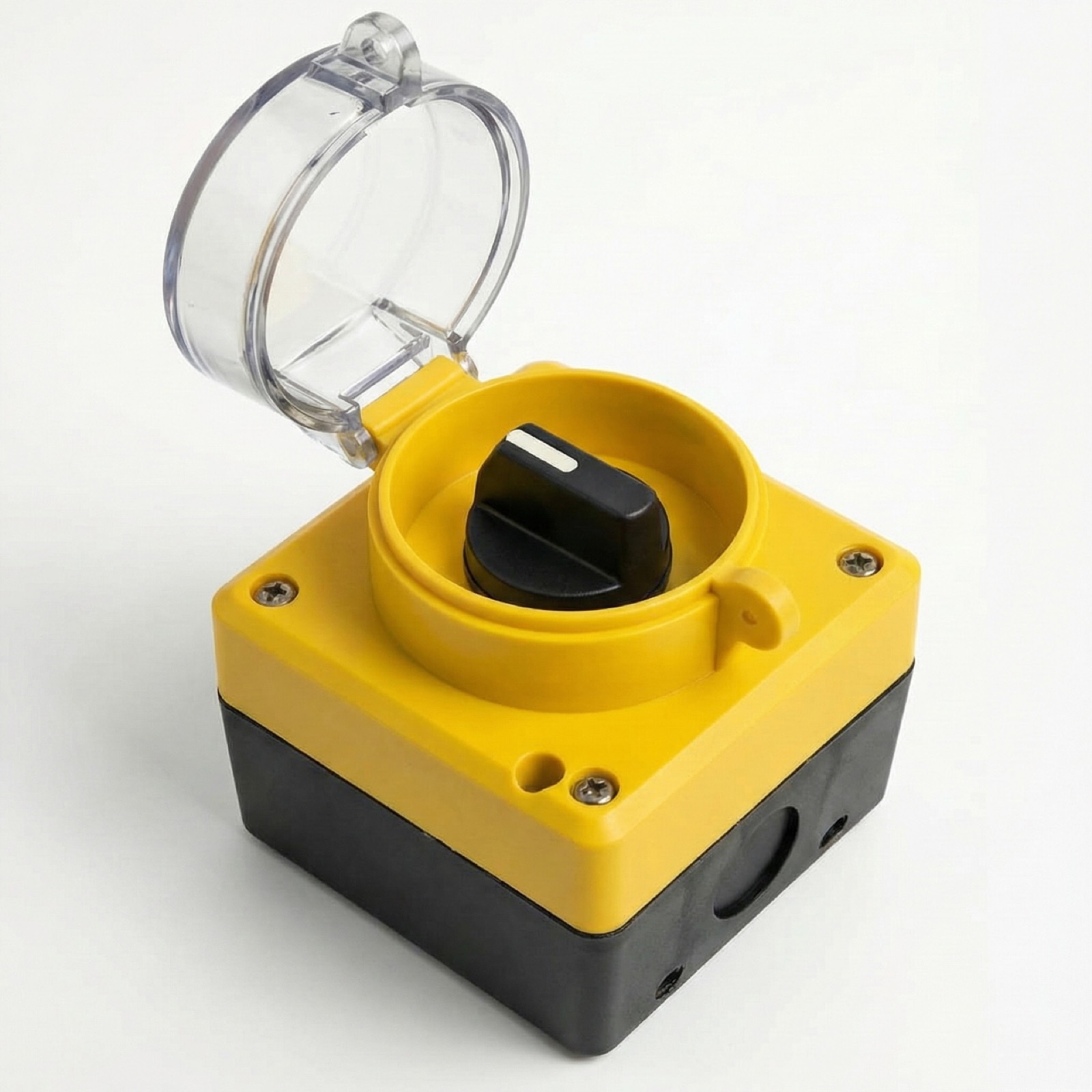

Tread-resistant guard
The hinged side guard protects the devices from dust and impacts of up to 100 kg while still allowing the emergency stop switch to be activated. Its shape distributes the load across the station’s structure.

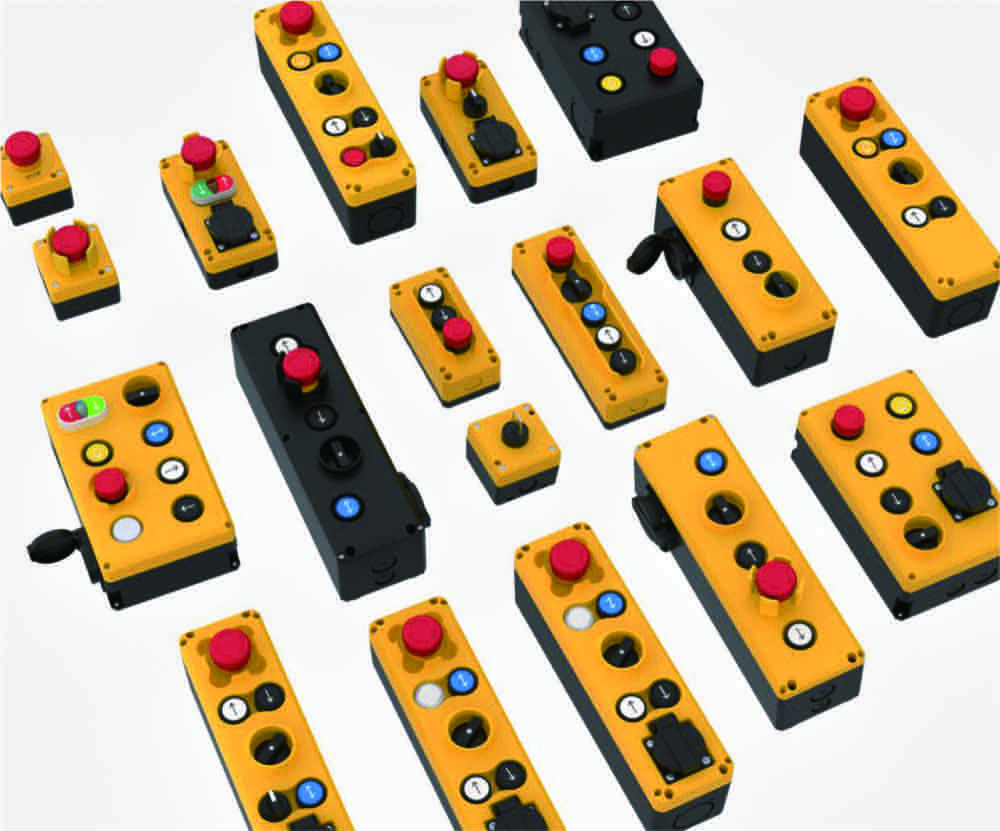

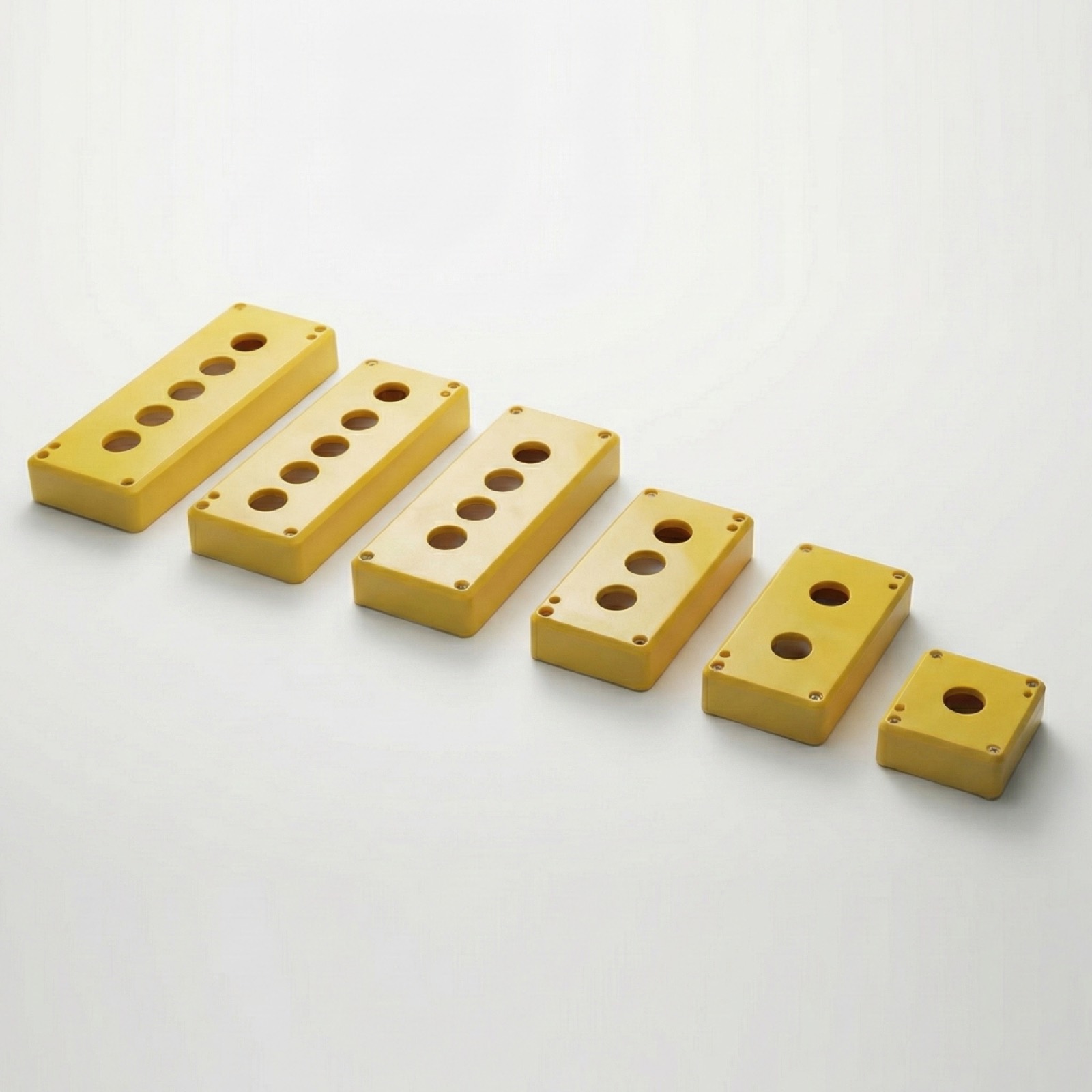

Modularity
The number, type and position of the device openings are freely configurable: fitting, labelling and power socket variants can be combined to suit. The modular system grows with the requirements of your lift control.

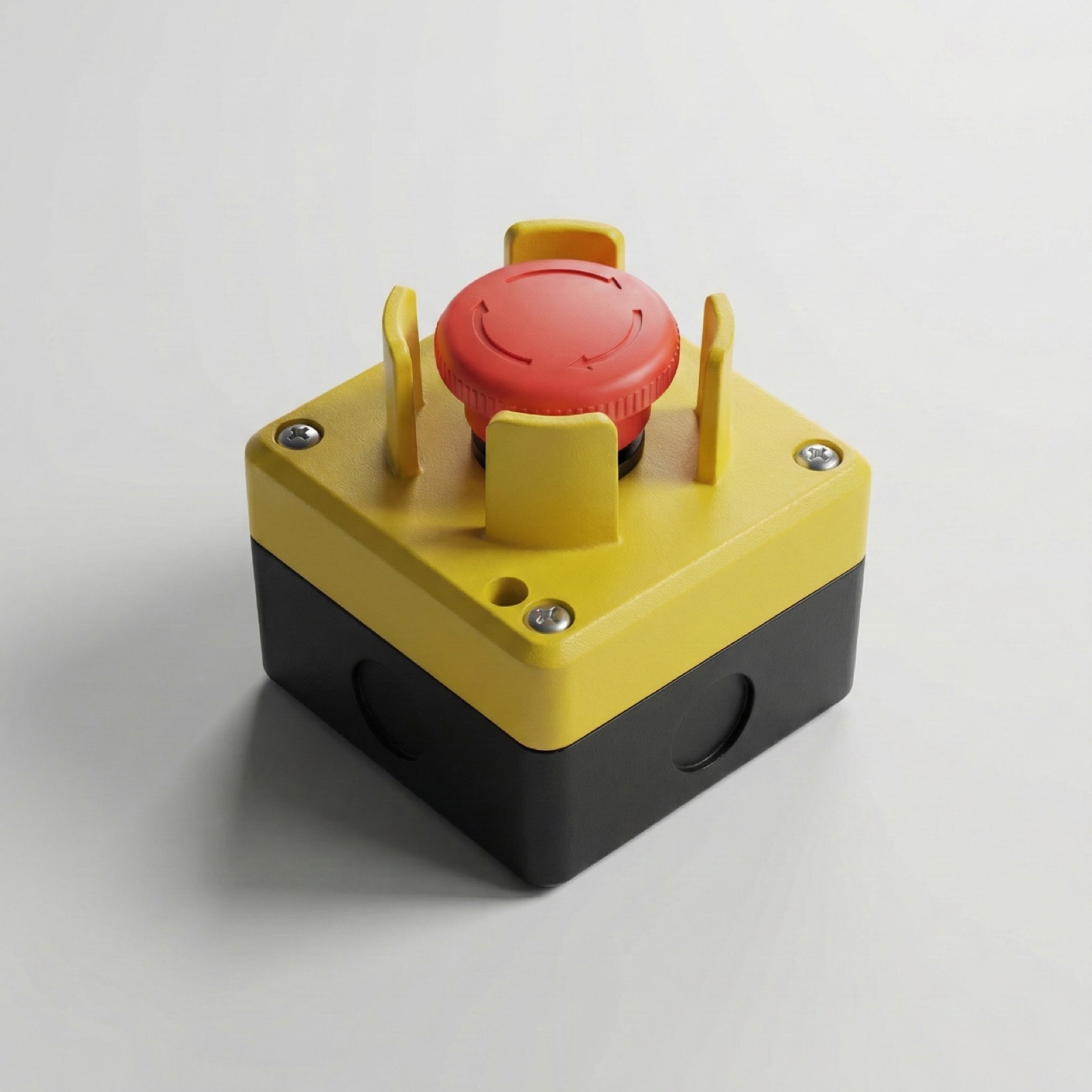

Robustness & Protection
- Recessed buttons and hinged guards protect against impacts
- Optional protective covers for large controls
- Suitable for harsh industrial environments

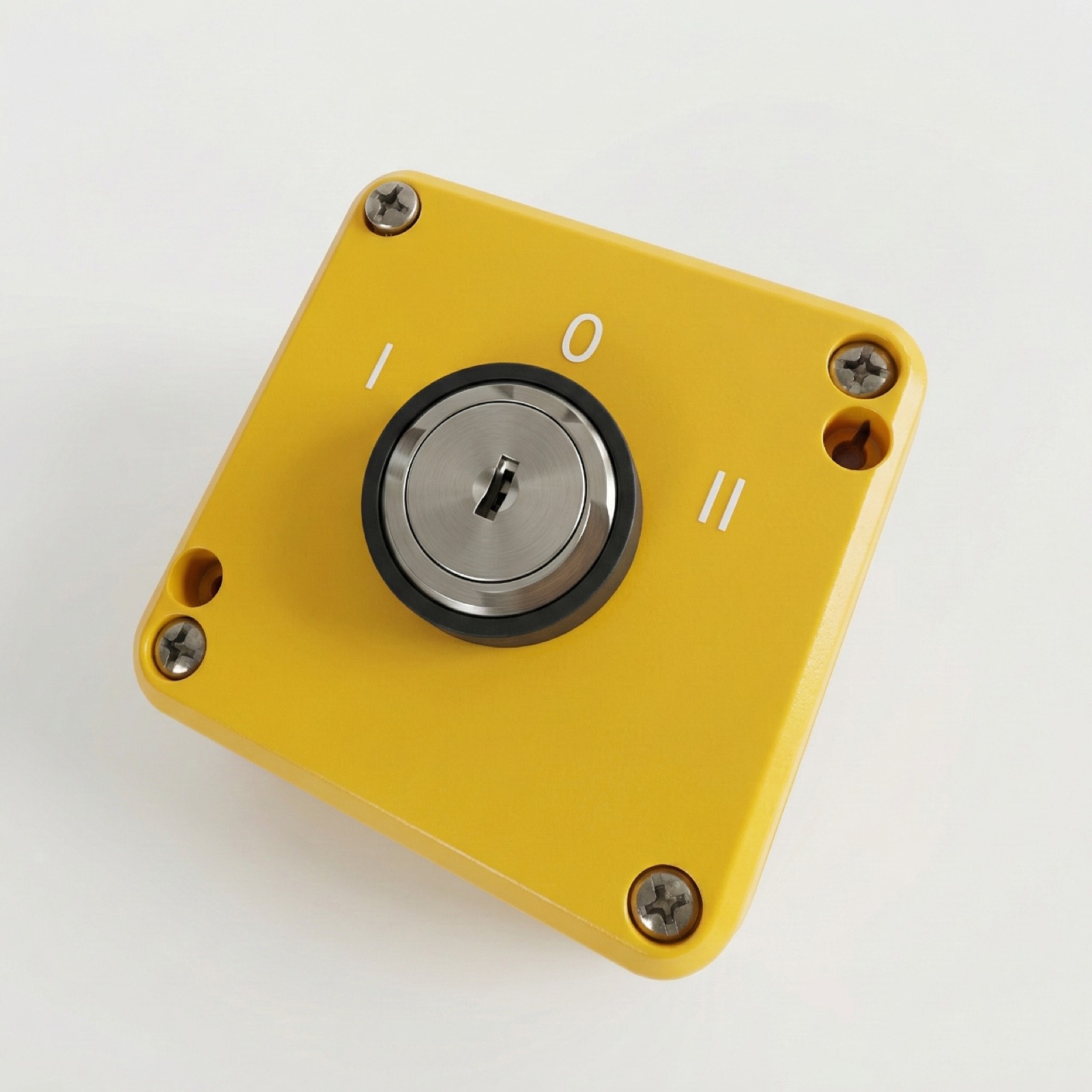

Laser engraving
KINRED uses a modern laser engraving system for its control stations. It eliminates the need for pad printing or labels, keeping every engraving permanently legible and extremely durable.

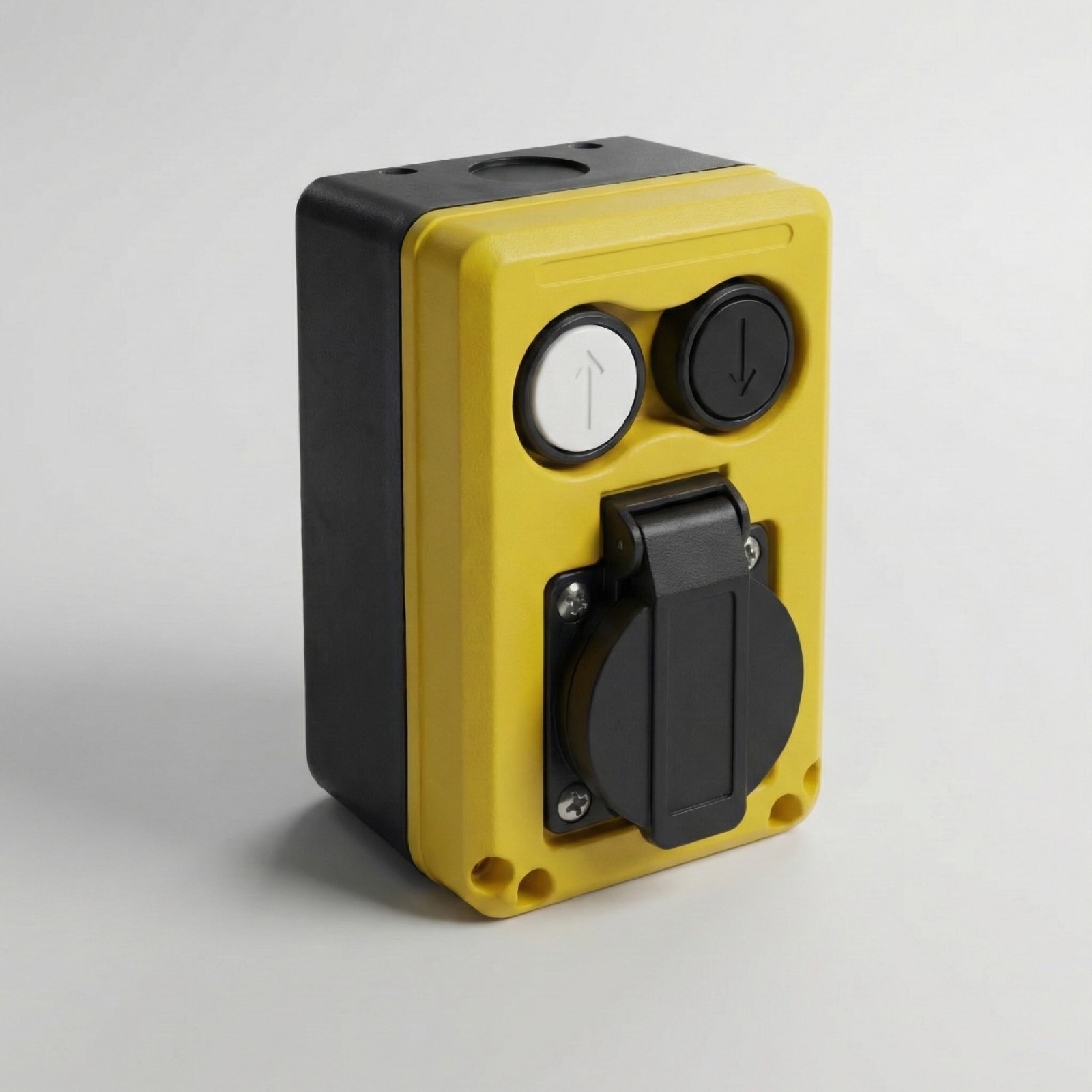

Power socket
The power socket is made from high-quality, flame-retardant PA6 plastic that resists deformation and fading. It offers reliable protection against wind, sand and rain, along with a long service life.

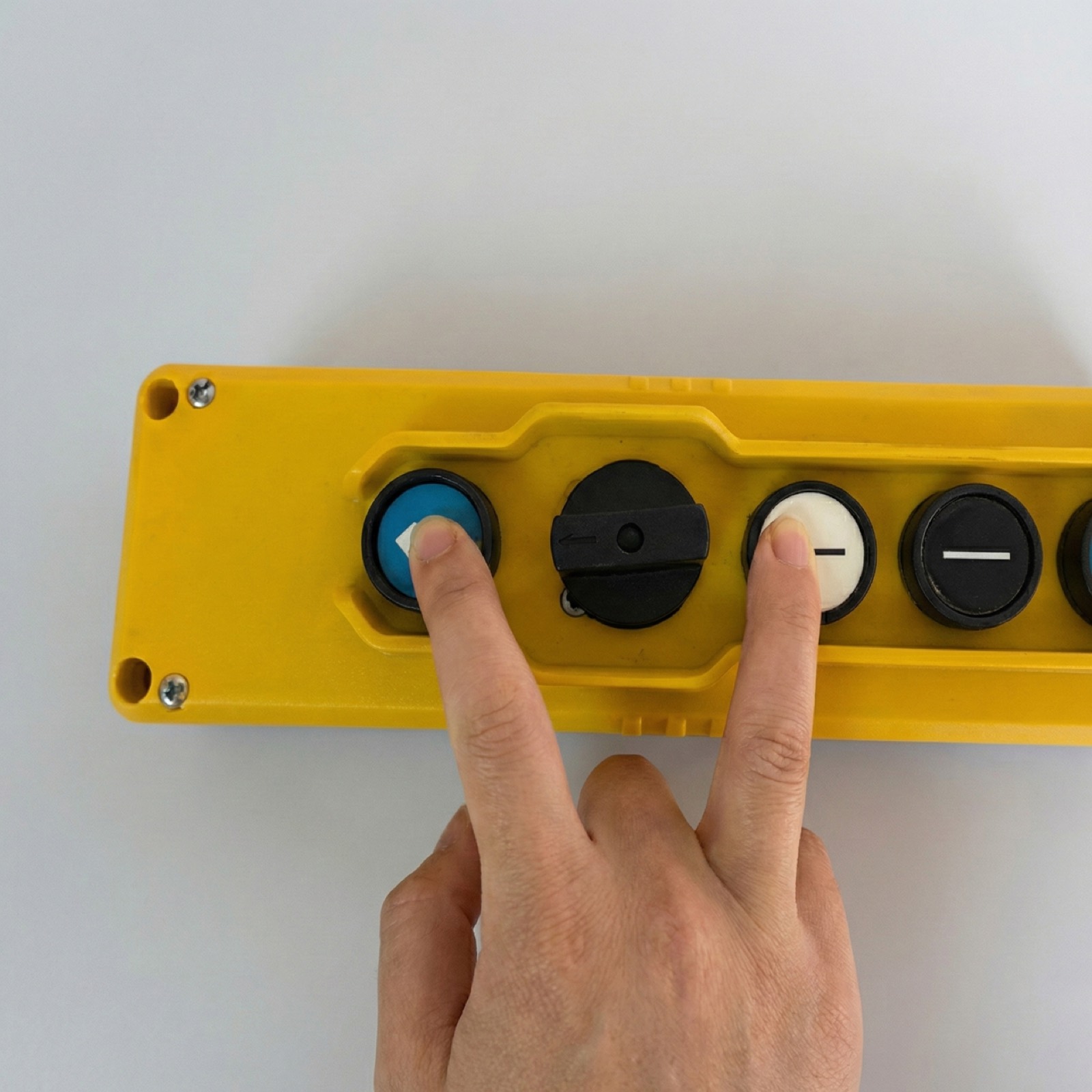

Pushbuttons
During inspection, car movement is controlled with one hand by pressing the direction button and the RUN button simultaneously. If several inspection control stations are switched to INSPECTION, the car can only be moved when the same pushbuttons are pressed simultaneously at all affected stations.
Standards & Compliance
Designed to the relevant standards for lift technology
EN 81-20 / EN 81-50 Safety rules for the construction and installation of lifts
IEC 60947-5-1 Low-voltage switchgear and controlgear
IEC 60947-1 General rules for low-voltage switchgear assemblies
EN 60204-1 Safety of machinery – Electrical equipment of machines
EN 60529 Degrees of protection (IP54 standard, IP65 on request)
Our Devices
HQ key switch 1‑0-2
HQ UP pushbutton
HQ selector switch 1‑2
HQ red LED indicator light
HQ green LED indicator light
HQ flush-mount pushbutton, black
HQ flush-mount pushbutton, green
HQ emergency stop switch (GB/T 14048.1)
HQ DOWN pushbutton
HQ double-arrow button
HQ blue LED indicator light
HQ alarm button
Signal device (buzzer/flashing light)
Cam switch 1‑2 (normal/inspection mode)
Choose your fitting: pushbuttons, emergency stop, indicator lights, power sockets
Device Openings
Configurable from 1 to 10 device openings — click a number to see matching boxes in the configurator.
Series
Jump straight to the KEB series you need in the configurator.
Housing Sizes
Devices (14)
HQ key switch 1‑0-2 HQ UP pushbutton HQ selector switch 1‑2 HQ red LED indicator light HQ green LED indicator light HQ flush-mount pushbutton, black HQ flush-mount pushbutton, green HQ emergency stop switch (GB/T 14048.1) HQ DOWN pushbutton HQ double-arrow button HQ blue LED indicator light HQ alarm button Signal device (buzzer/flashing light) Cam switch 1‑2 (normal/inspection mode) Power Socket Types (8)
Alternatively configurable without a power socket as a maintenance-only box.

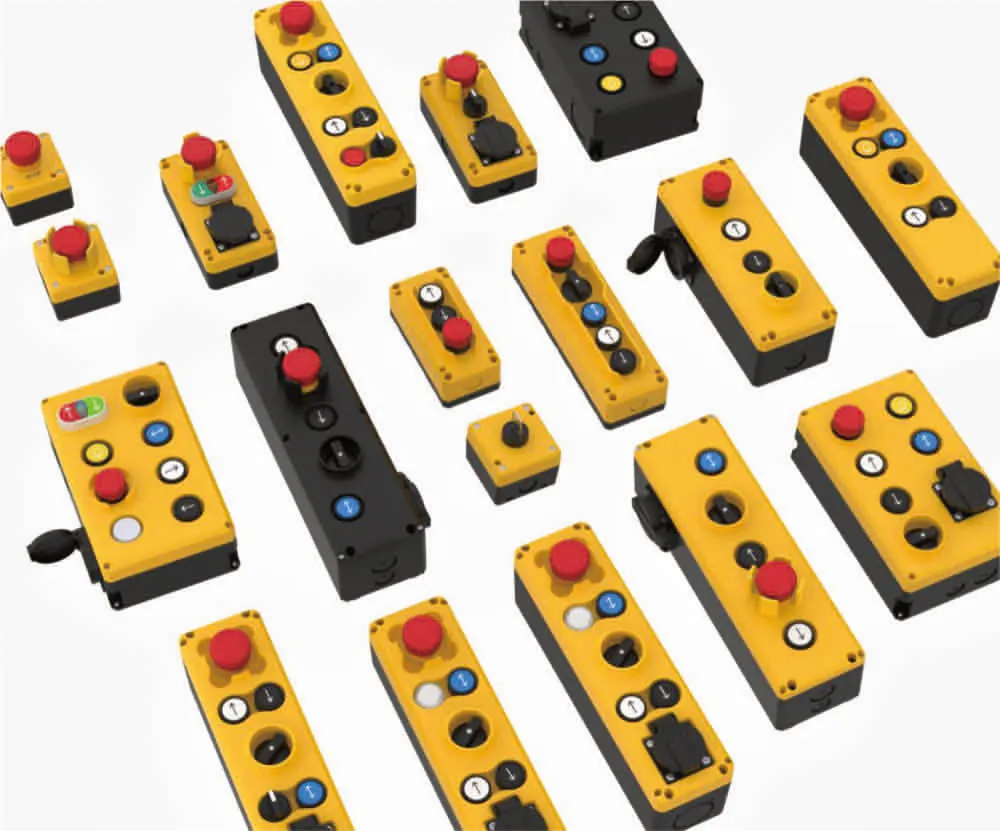

The KEB Series
Three series for every application

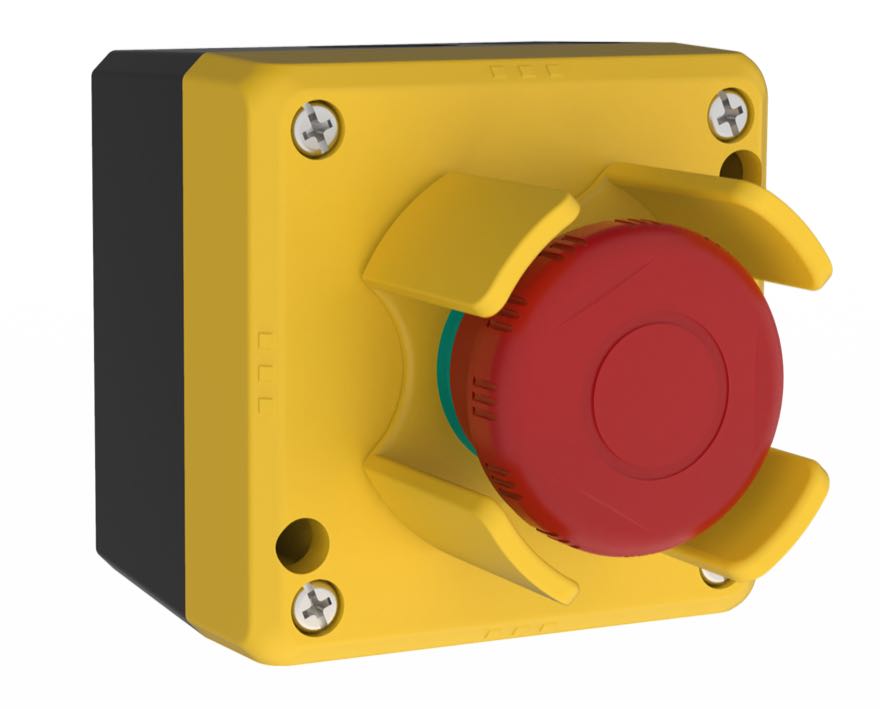

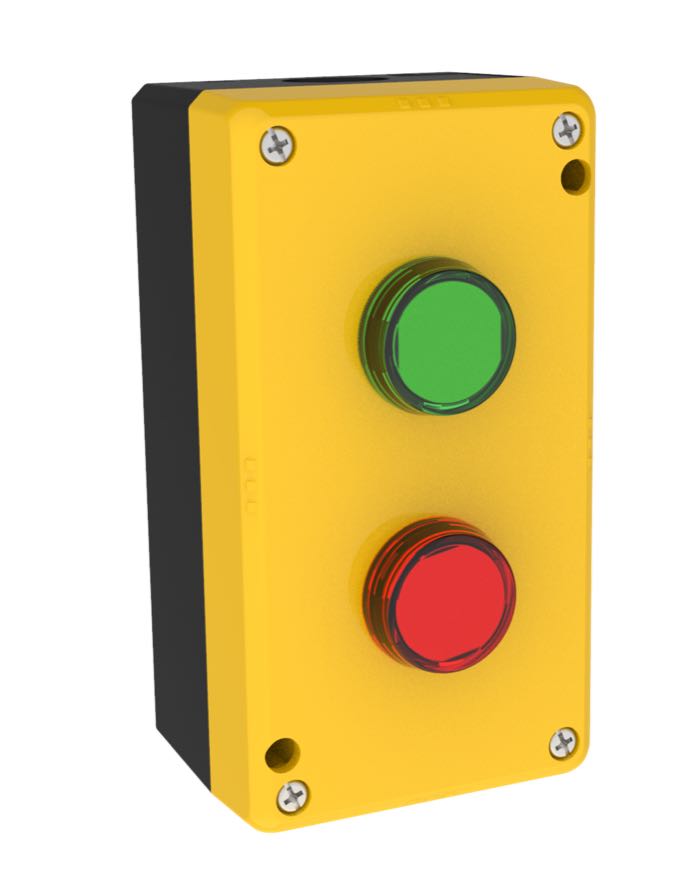

KEB-A
Compact, modular control station for inspection and maintenance.

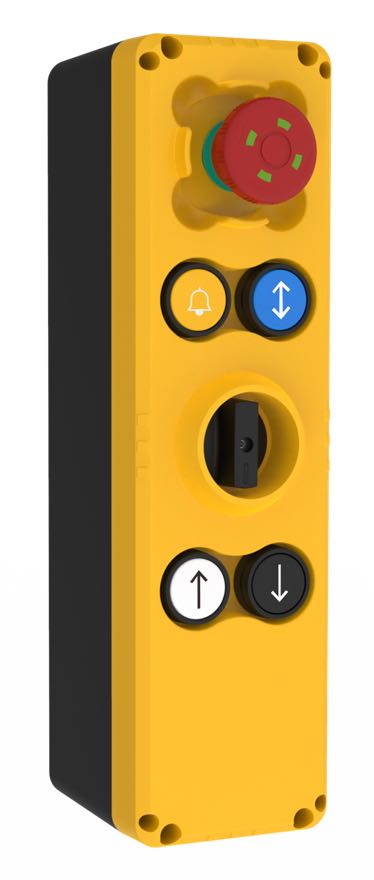

76–200 × 76 × 59,6 mm Discover the series → KEB-B
Designed for continuous operation, with a larger housing for more controls.

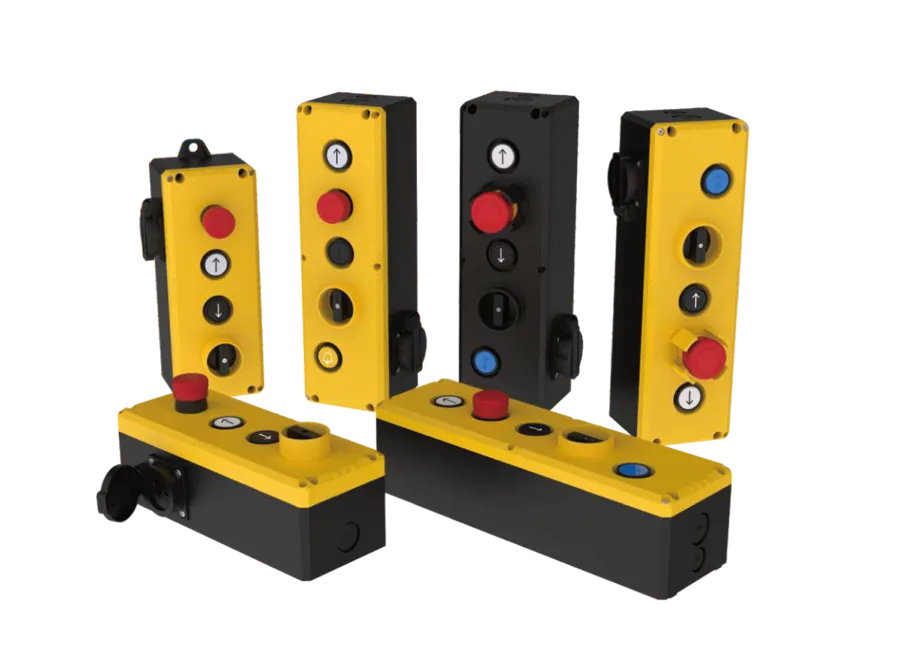

310 × 85 × 73,6–96,5 mm Discover the series → KEB-C

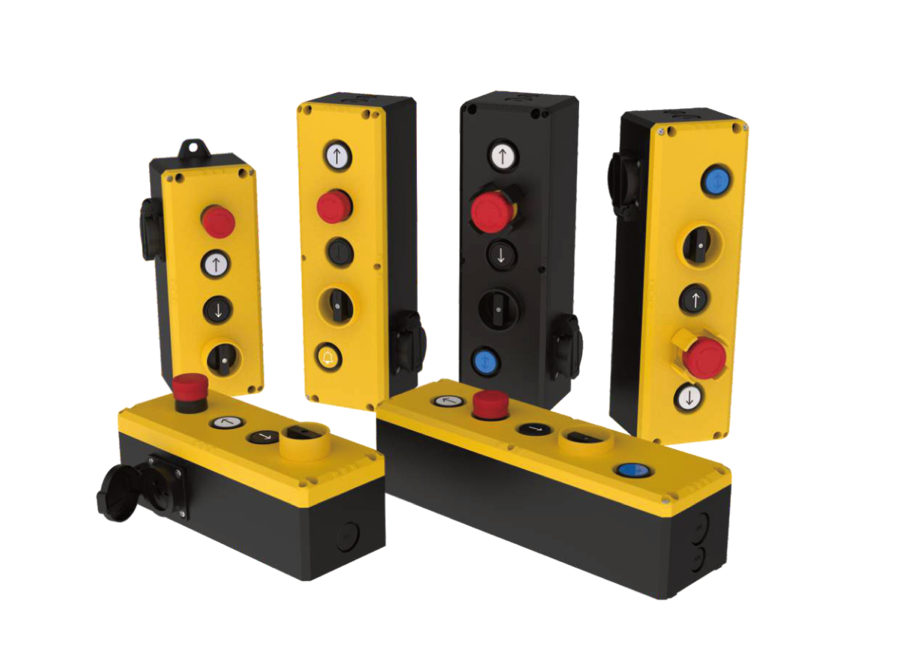

Large-format control station for extensive fit-outs.
250–320 × 96 × 85–87 mm Discover the series → Product Configurator
Configure Your Lift Maintenance Box Now
Configure your custom lift maintenance box in just a few steps — the right devices, power sockets and fit-out to suit your requirements for lift control, safety and maintenance. Our team is happy to advise you personally on your KEB series.
