KEB-KF7B001
- EN 81-20 / EN 81-50
- Car roof
The KEB-KF7B001 maintenance box from the KEB-KF series is designed for installation on the car roof: 7 openings, fitted ex works with e-stop, 4 × pushbutton, cam switch and power socket. Designed to EN 81-20 / EN 81-50.
| Series | KEB-KF |
|---|---|
| Installation Location | Car roof |
| Device Openings | 7 |
| Housing Dimensions (W × H × D) | see dimensional drawing |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Ex-Works Fitting
Standard fitting of this design — 7 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|
| E-Stop HQ-8102-NC TR | Red · Twist · IP65 | 2NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton HQ-2110Y | Yellow · Momentary function · IP65 | 1NO | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton UP HQ-2121-DJT-W | White · Momentary function · IP65 | 2NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton DOWN HQ-2121-DJT-K | Black · Momentary function · IP65 | 2NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton RUN HQ-2120-SJT-B | Blue · Momentary function · IP65 | 2NO | Circuit diagram Dimensional drawing Cutout drawing |
| Cam switch JHLW20-9C9012/3 | — | — | |
| Power Socket KPS/EU | German · 16A · 250V · 2P+E · IP44 | — |
The colours of the direction controls are fixed in EN 81-20 — white for UP, black for DOWN, blue for RUN. Button colours and symbols to EN 81-20

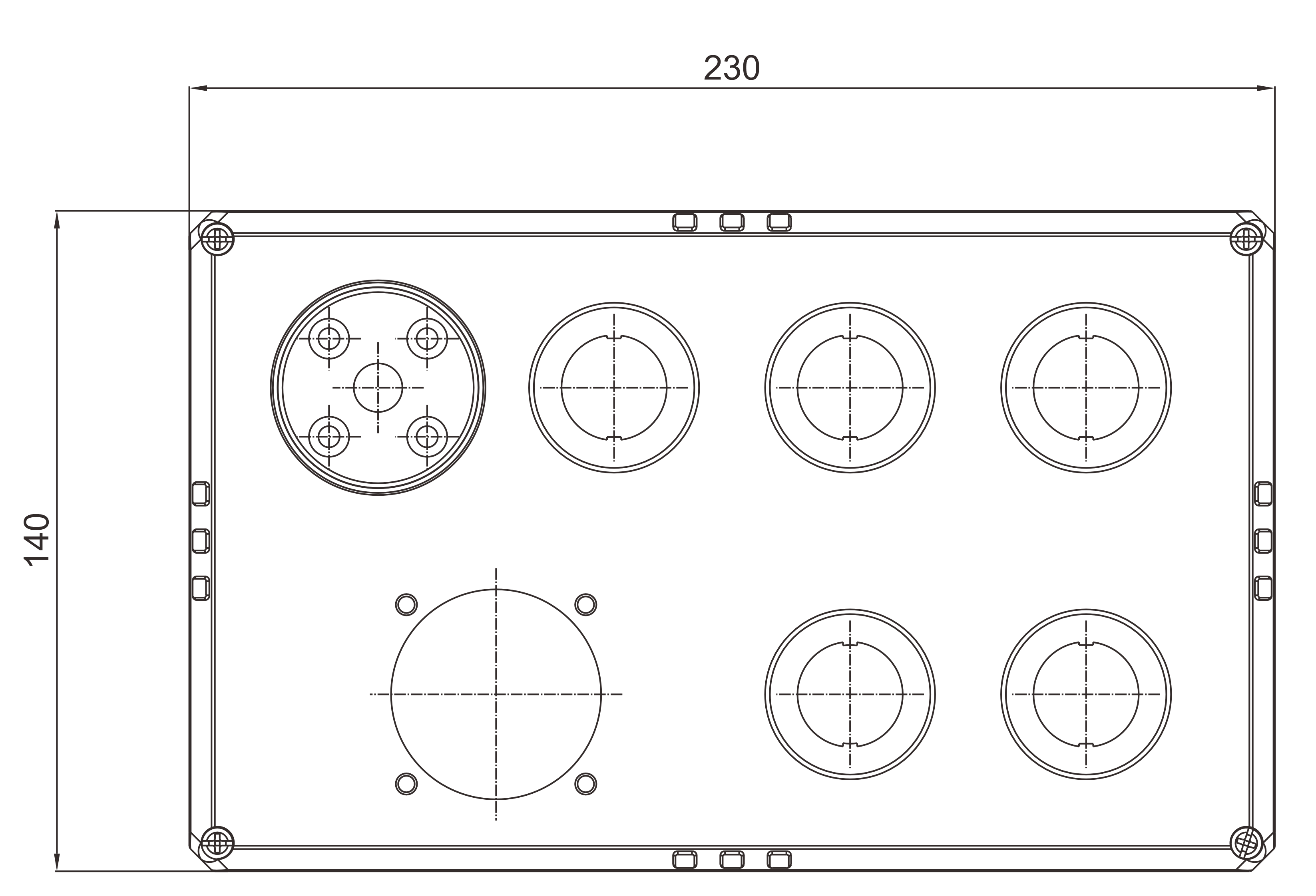

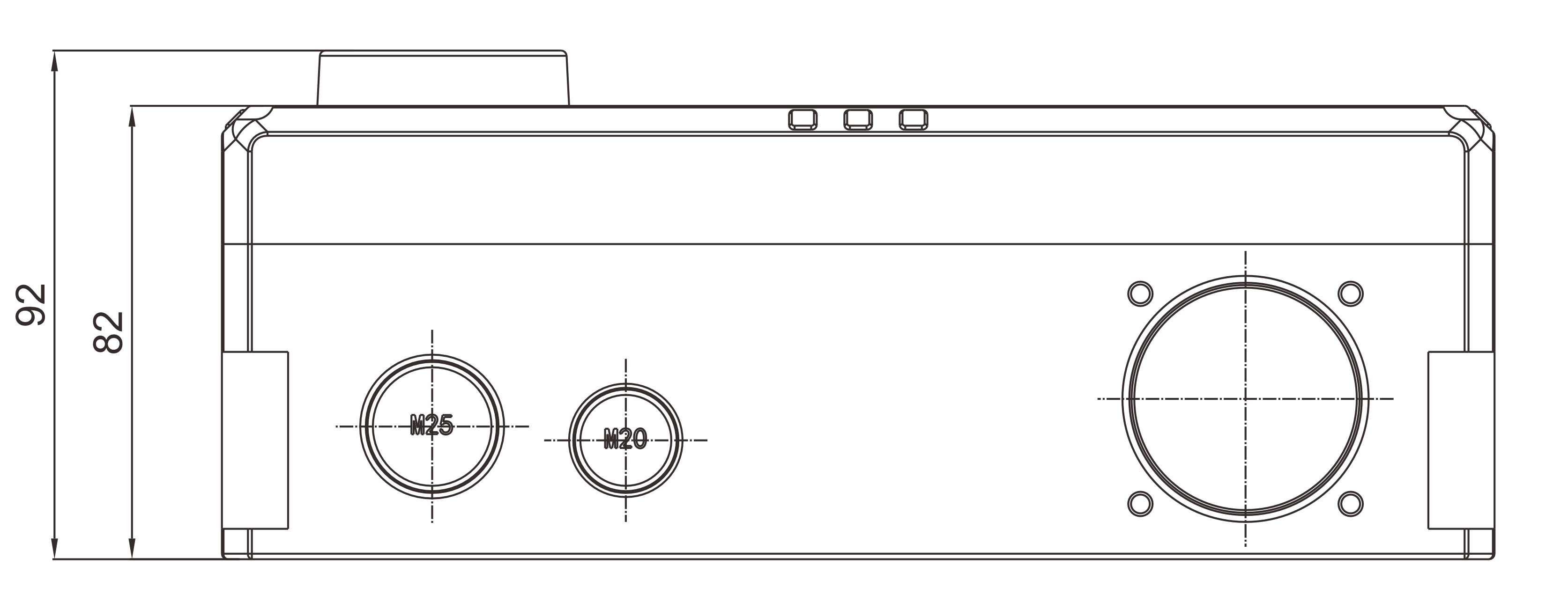

Housing and Dimensional Drawing
| Housing type | KEB-KF7B |
|---|---|
| Dimensions (W × H × D) | see dimensional drawing |
| Device openings | 7 |
| Cover colour | Black |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
Order Numbers by Socket Outlet Type
Same box, one code for the socket outlet's country variant. Other socket outlet types on request.
| Code | Socket Outlet | Order Number |
|---|---|---|
| BR | Brazil | KEB-KF7B001/BR |
| CH | Australia / China | KEB-KF7B001/CH |
| EU | German | KEB-KF7B001/EU |
| FR | France | KEB-KF7B001/FR |
| SW | Swiss | KEB-KF7B001/SW |
| UK | British | KEB-KF7B001/UK |
| US | USA | KEB-KF7B001/US |
Customisation straight from the factory
Free laser engraving
From 25 units we engrave labels, symbols and your company logo free of charge — permanently legible, with no stickers or pad printing.
Request engravingCustom assembly with special push buttons
On request we equip your maintenance box with special push buttons and customer-specific controls — fully assembled and tested ex works.
Request custom assemblyConfigure the KEB-KF7B001 now
Set the fitting, power socket type and details in the configurator — or get in touch directly.
