KEB-S Series · Lift Maintenance Box
KEB-S5B003
- EN 81-20 / EN 81-50
- Control panel
The KEB-S5B003 maintenance box from the KEB-S series is designed for installation at the control panel: 5 openings, fitted ex works with e-stop, 3 × pushbutton and cam switch. Designed to EN 81-20 / EN 81-50.
| Series | KEB-S |
|---|---|
| Installation Location | Control panel |
| Device Openings | 5 |
| Housing Dimensions (W × H × D) | see dimensional drawing |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Fitting
Ex-Works Fitting
Standard fitting of this design — 5 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|
| E-Stop HQ-8101-NC PR | Red · Pull&Push · IP65 | 1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton HQ-2120B | Blue · Momentary function · IP65 | 2NO | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton HQ-2111W | White · Momentary function · IP65 | 1NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton HQ-2111K | Black · Momentary function · IP65 | 1NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Cam switch JHLW20-9C9010/2 | — | — |
Housing

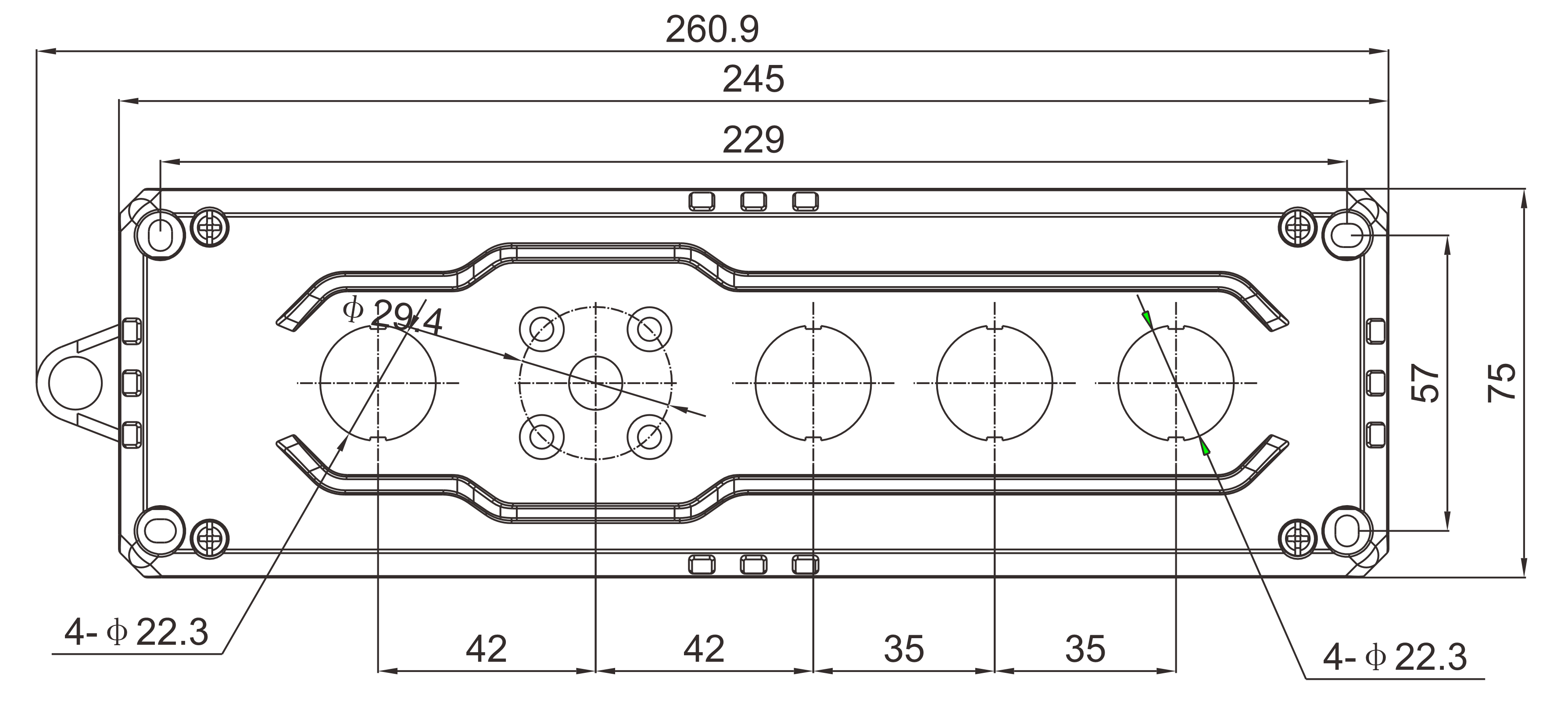

Front view

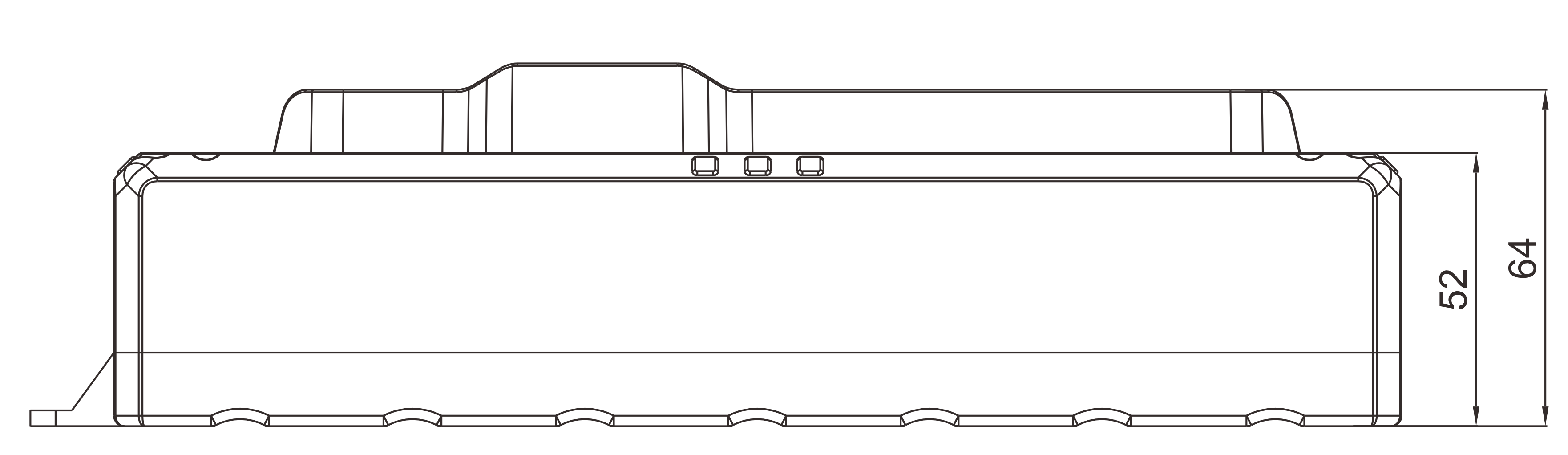

Side view
Housing and Dimensional Drawing
| Housing type | KEB-S5B |
|---|---|
| Dimensions (W × H × D) | see dimensional drawing |
| Device openings | 5 |
| Cover colour | Flash Yellow |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
