KEB-C4A003
- EN 81-20 / EN 81-50
- Control panel
The KEB-C4A003 maintenance box from the KEB-C series is designed for installation at the control panel: 4 openings in the 250 × 96 × 85 mm housing, fitted ex works with 2 × pushbutton, indicator and cam switch. Designed to EN 81-20 / EN 81-50.
| Series | KEB-C |
|---|---|
| Installation Location | Control panel |
| Device Openings | 4 |
| Housing Dimensions (W × H × D) | 250 × 96 × 85 mm |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Ex-Works Fitting
Standard fitting of this design — 4 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|

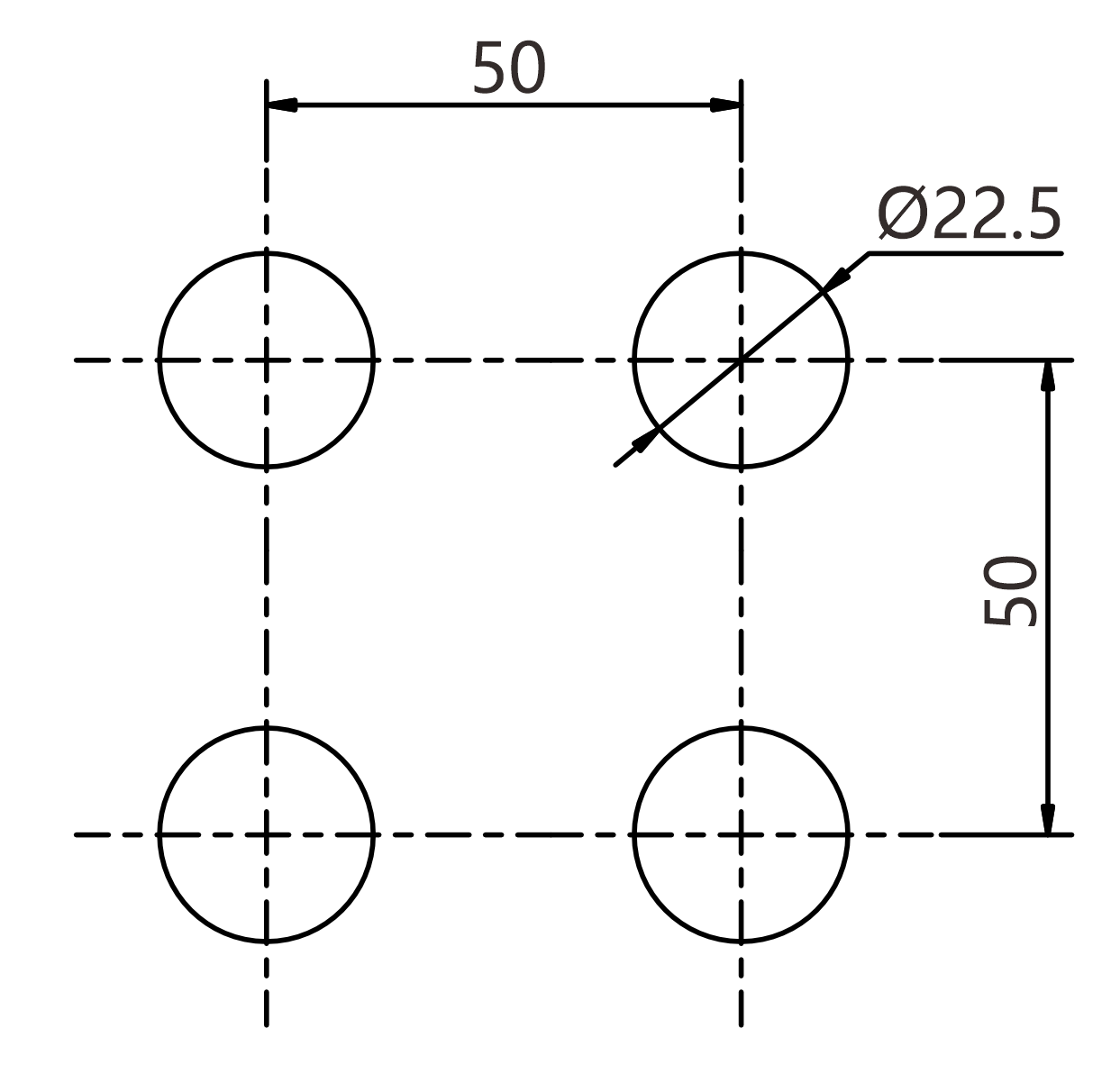

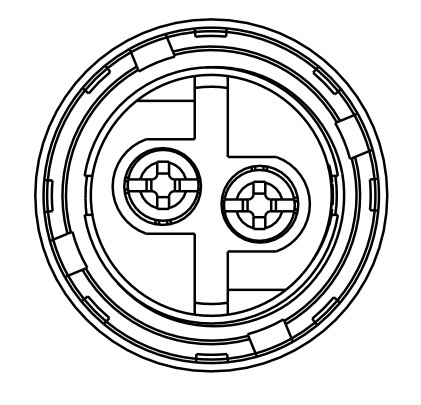

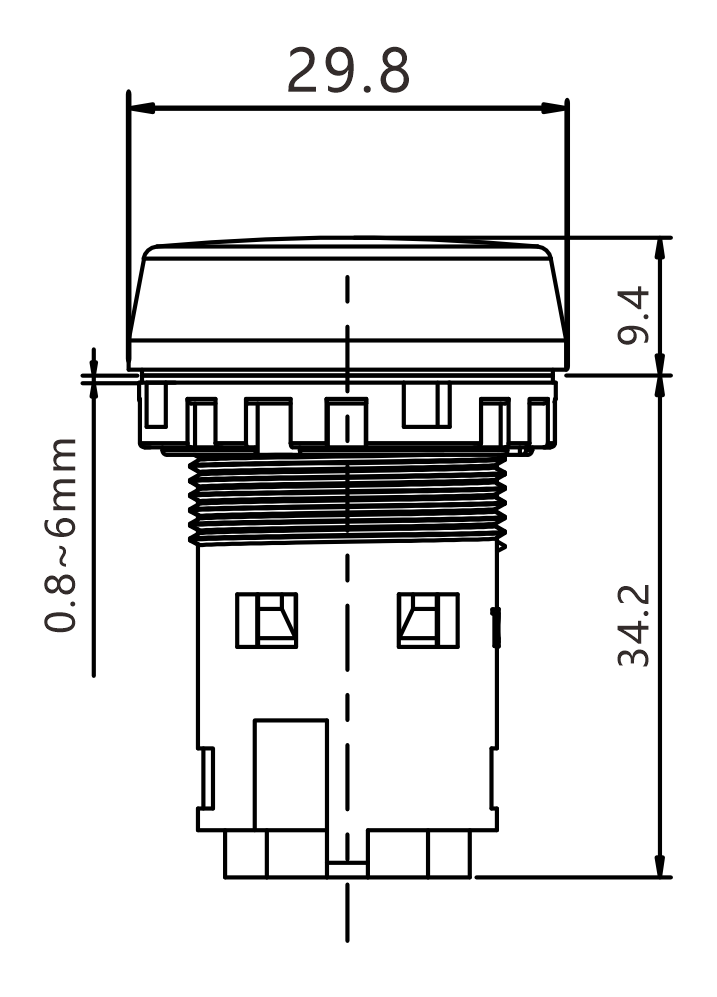

| Pushbutton UP HQ-2150-DJT-W | White · Momentary function · IP65 | 5NO | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton DOWN HQ-2150-DJT-K | Black · Momentary function · IP65 | 5NO | Circuit diagram Dimensional drawing Cutout drawing |
| Indicator HQ-1W0-UGA2 | Green · IP65 | — | Circuit diagram Dimensional drawing Cutout drawing |
| Cam switch JHLW20-9C9012/4 | — | — |
The colours of the direction controls are fixed in EN 81-20 — white for UP, black for DOWN, blue for RUN. Button colours and symbols to EN 81-20
Housing and Dimensional Drawing
| Housing type | KEB-C4A |
|---|---|
| Dimensions (W × H × D) | 250 × 96 × 85 mm |
| Device openings | 4 |
| Cover colour | Flash Yellow |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
Customisation straight from the factory
Free laser engraving
From 25 units we engrave labels, symbols and your company logo free of charge — permanently legible, with no stickers or pad printing.
Request engravingCustom assembly with special push buttons
On request we equip your maintenance box with special push buttons and customer-specific controls — fully assembled and tested ex works.
Request custom assemblyMore from the KEB-C series
Configure the KEB-C4A003 now
Set the fitting, power socket type and details in the configurator — or get in touch directly.
