KEB-G2A001
- EN 81-20 / EN 81-50
- Pit
The KEB-G2A001 maintenance box from the KEB-G series is designed for installation in the pit: 2 openings, fitted ex works with e-stop and power socket. Designed to EN 81-20 / EN 81-50.
| Series | KEB-G |
|---|---|
| Installation Location | Pit |
| Device Openings | 2 |
| Housing Dimensions (W × H × D) | see dimensional drawing |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Ex-Works Fitting
Standard fitting of this design — 3 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|
| E-Stop HQ-8101-NC PV | Red · Pull&Push with vision · IP65 | 1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Power Socket KPS/EU | German · 16A · 250V · 2P+E · IP44 | — | |
| Guard JF22 | — | — |

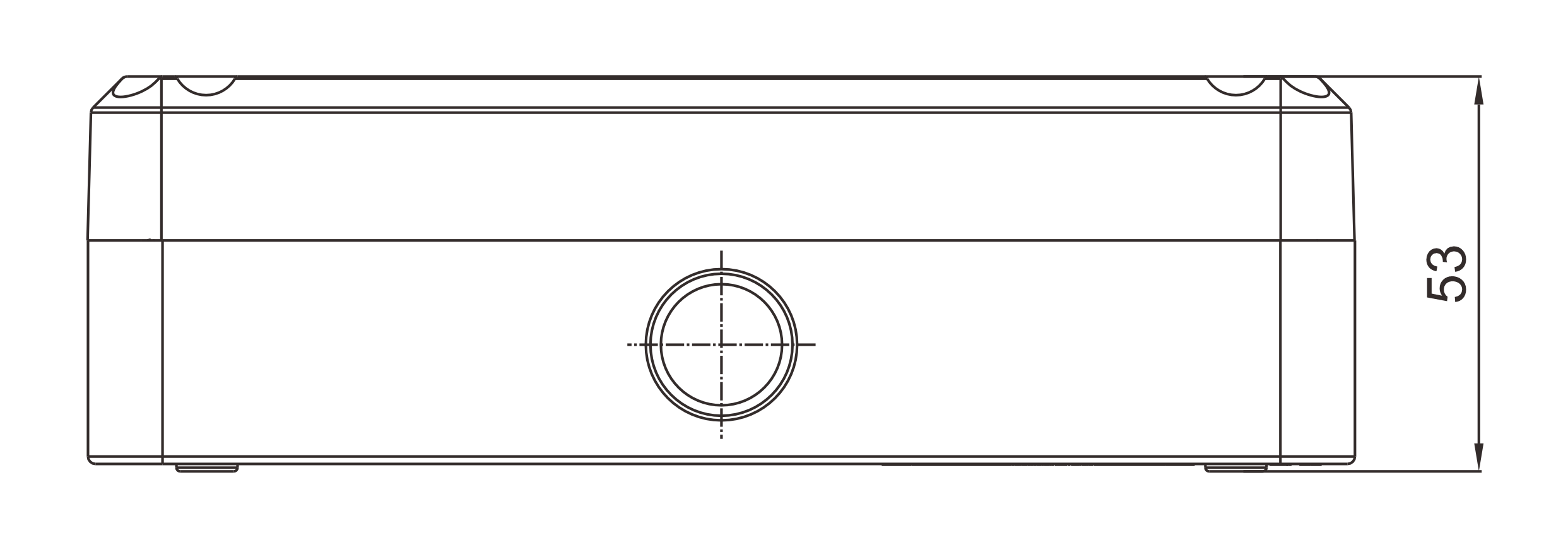

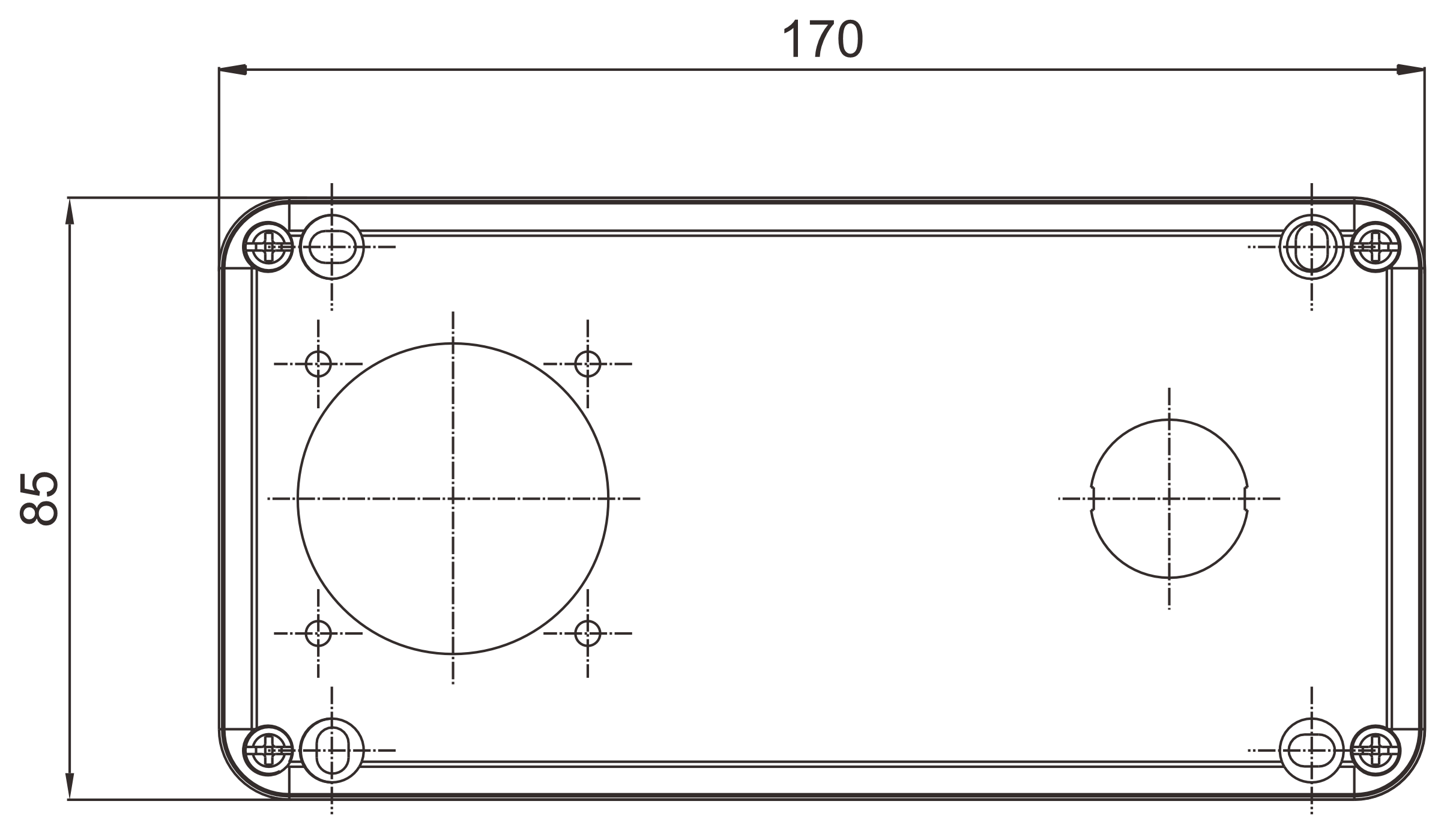

Housing and Dimensional Drawing
| Housing type | KEB-G2A |
|---|---|
| Dimensions (W × H × D) | see dimensional drawing |
| Device openings | 2 |
| Cover colour | Flash Yellow |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
Order Numbers by Socket Outlet Type
Same box, one code for the socket outlet's country variant. Other socket outlet types on request.
| Code | Socket Outlet | Order Number |
|---|---|---|
| BR | Brazil | KEB-G2A001/BR |
| CH | Australia / China | KEB-G2A001/CH |
| EU | German | KEB-G2A001/EU |
| FR | France | KEB-G2A001/FR |
| SW | Swiss | KEB-G2A001/SW |
| UK | British | KEB-G2A001/UK |
| US | USA | KEB-G2A001/US |
Customisation straight from the factory
Free laser engraving
From 25 units we engrave labels, symbols and your company logo free of charge — permanently legible, with no stickers or pad printing.
Request engravingCustom assembly with special push buttons
On request we equip your maintenance box with special push buttons and customer-specific controls — fully assembled and tested ex works.
Request custom assemblyMore from the KEB-G series
