KEB-A Series · Lift Maintenance Box
KEB-A5A003
- EN 81-20 / EN 81-50
- Pit
The KEB-A5A003 maintenance box from the KEB-A series is designed for installation in the pit: 5 openings in the 200 × 76 × 59,6 mm housing, fitted ex works with e-stop, 3 × pushbutton and indicator. Designed to EN 81-20 / EN 81-50.
| Series | KEB-A |
|---|---|
| Installation Location | Pit |
| Device Openings | 5 |
| Housing Dimensions (W × H × D) | 200 × 76 × 59,6 mm |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Fitting
Ex-Works Fitting
Standard fitting of this design — 5 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|

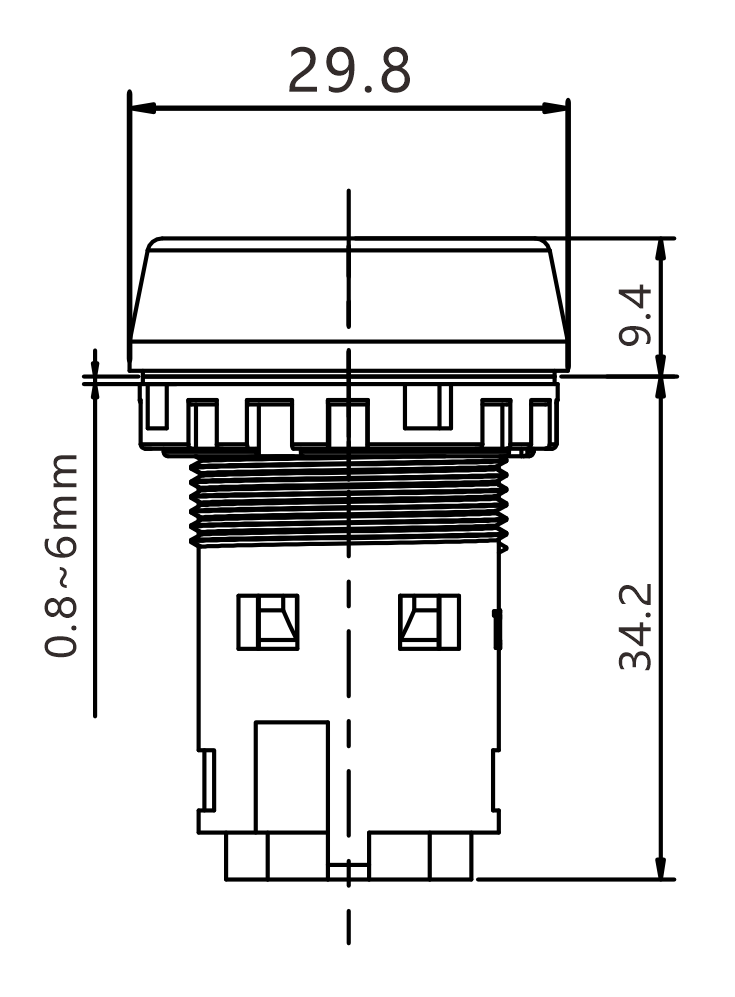

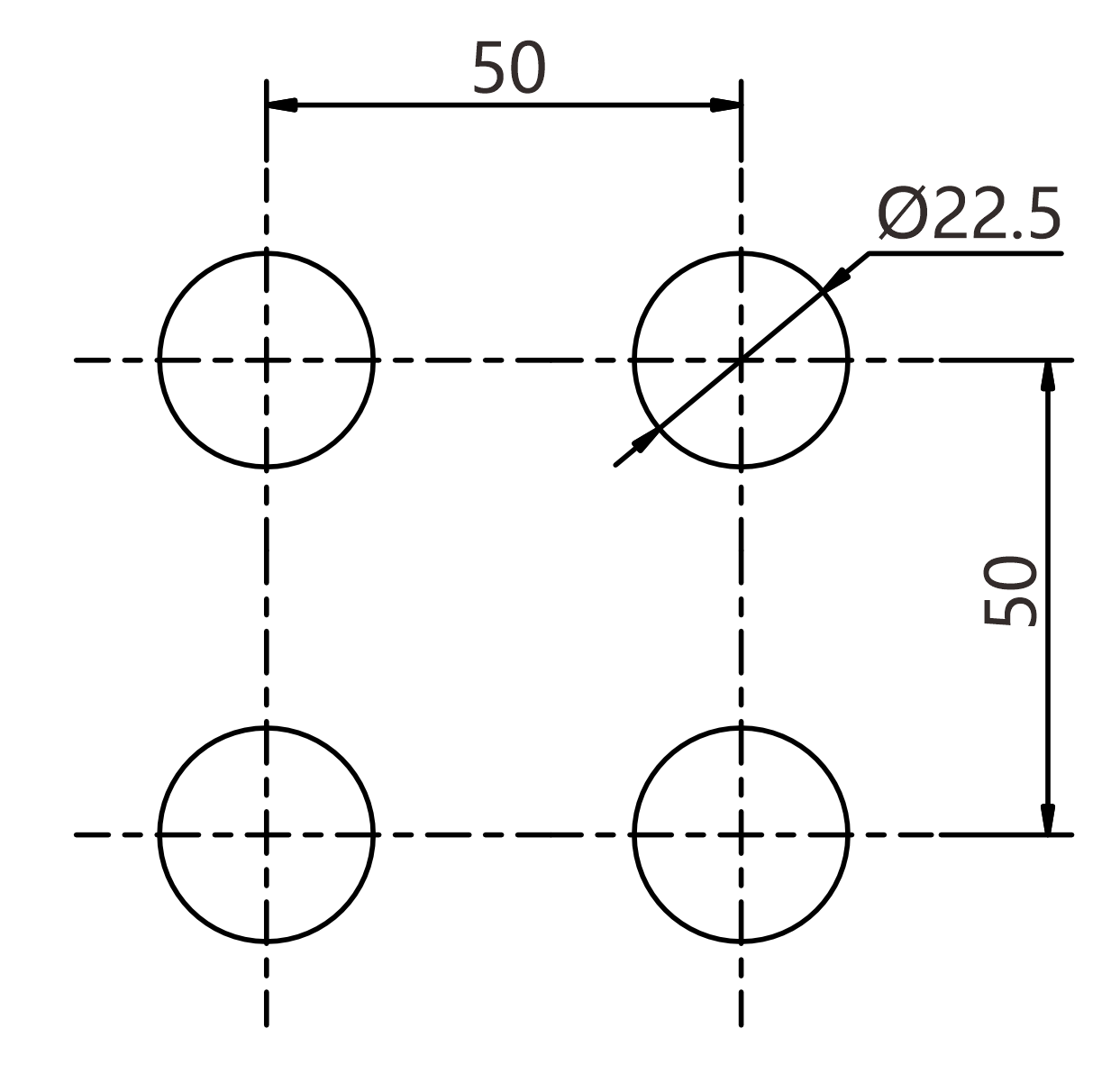

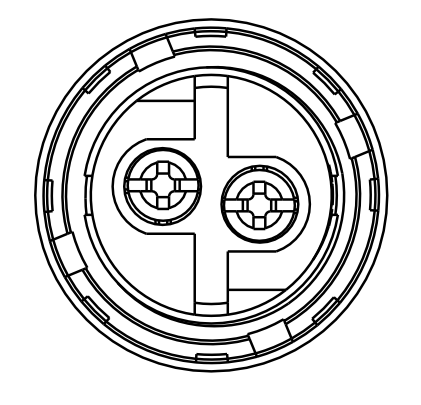

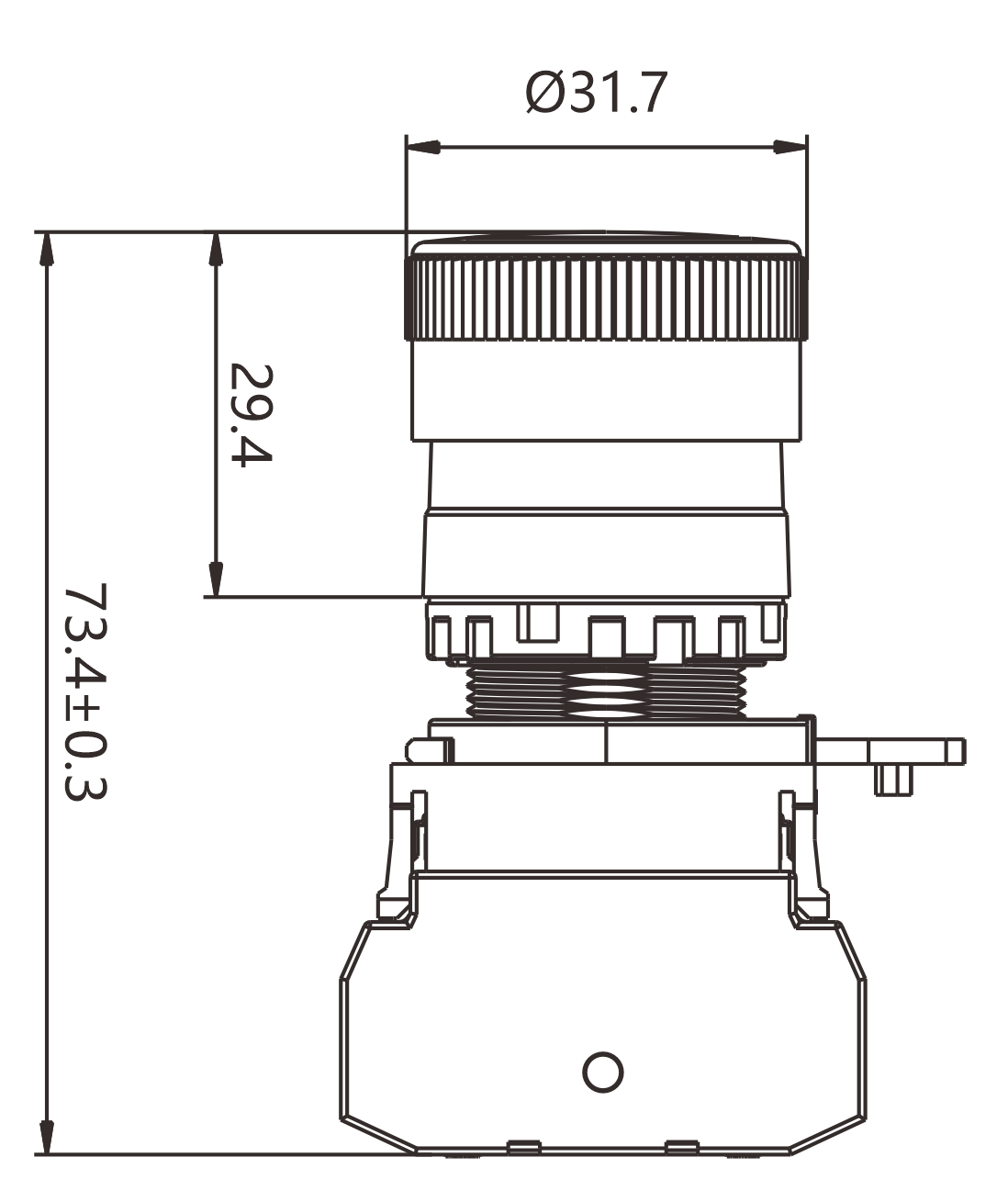

| E-Stop HQ-8111-NA TR | Red · Twist · IP65 | 1NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
| 2 × Pushbutton HQ-2110G | Green · Momentary function · IP65 | 1NO | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton HQ-2101K | Black · Momentary function · IP65 | 1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Indicator HQ-1T0-UBA2 | Blue · IP65 | — | Circuit diagram Dimensional drawing Cutout drawing |
Housing
Front view
Side view
Housing and Dimensional Drawing
| Housing type | KEB-A5A |
|---|---|
| Dimensions (W × H × D) | 200 × 76 × 59,6 mm |
| Device openings | 5 |
| Cover colour | Flash Yellow |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
Our services
Customisation straight from the factory
Free laser engraving
From 25 units we engrave labels, symbols and your company logo free of charge — permanently legible, with no stickers or pad printing.
Request engravingCustom assembly with special push buttons
On request we equip your maintenance box with special push buttons and customer-specific controls — fully assembled and tested ex works.
