KEB-A5A002
- EN 81-20 / EN 81-50
- Pit

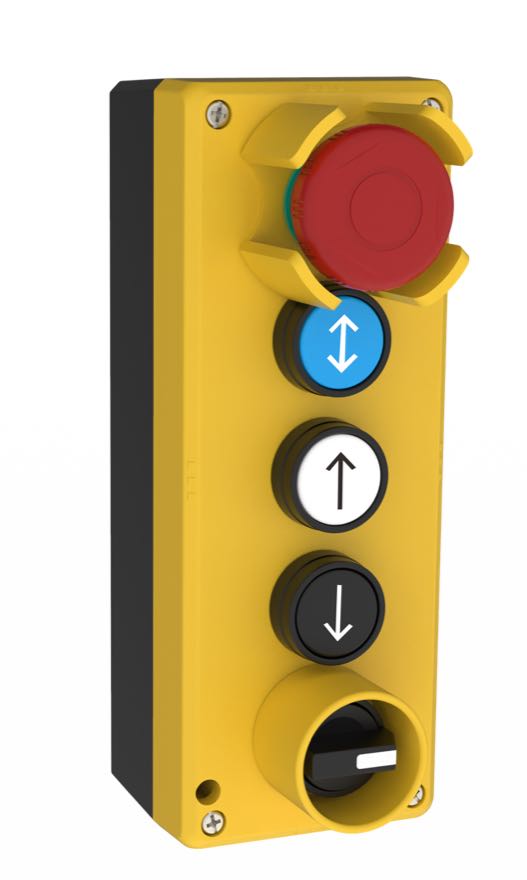

The KEB-A5A002 (KEB-A) is fitted with 5 openings and designed in a 200 × 76 × 59,6 mm housing for compliant, modular device fitting.
| Series | KEB-A |
|---|---|
| Installation Location | Pit |
| Device Openings | 5 |
| Housing Dimensions (W × H × D) | 200 × 76 × 59,6 mm |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Ex-Works Fitting
Standard fitting of this design — 6 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|
| E-Stop HQ-8101-NC PR | Red · Pull&Push · IP65 | 1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton UP HQ-2110-DJT-W | White · Momentary function · IP65 | 1NO | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton DOWN HQ-2110-DJT-K | Black · Momentary function · IP65 | 1NO | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton RUN HQ-2110-SJT-B | Blue · Momentary function · IP65 | 1NO | Circuit diagram Dimensional drawing Cutout drawing |
| Selector button HQ-4111-2 | Black · Latching function · IP65 | 1NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Guard JF22 | — | — |
The colours of the direction controls are fixed in EN 81-20 — white for UP, black for DOWN, blue for RUN. Button colours and symbols to EN 81-20
Housing and Dimensional Drawing
| Housing type | KEB-A5A |
|---|---|
| Dimensions (W × H × D) | 200 × 76 × 59,6 mm |
| Device openings | 5 |
| Cover colour | Flash Yellow |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
