KEB-A Series · Lift Maintenance Box
KEB-A3A006
- EN 81-20 / EN 81-50
- Pit
The KEB-A3A006 maintenance box from the KEB-A series is designed for installation in the pit: 3 openings in the 140 × 76 × 59,6 mm housing, fitted ex works with e-stop and 2 × pushbutton. Designed to EN 81-20 / EN 81-50.
| Series | KEB-A |
|---|---|
| Installation Location | Pit |
| Device Openings | 3 |
| Housing Dimensions (W × H × D) | 140 × 76 × 59,6 mm |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Fitting
Ex-Works Fitting
Standard fitting of this design — 3 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|

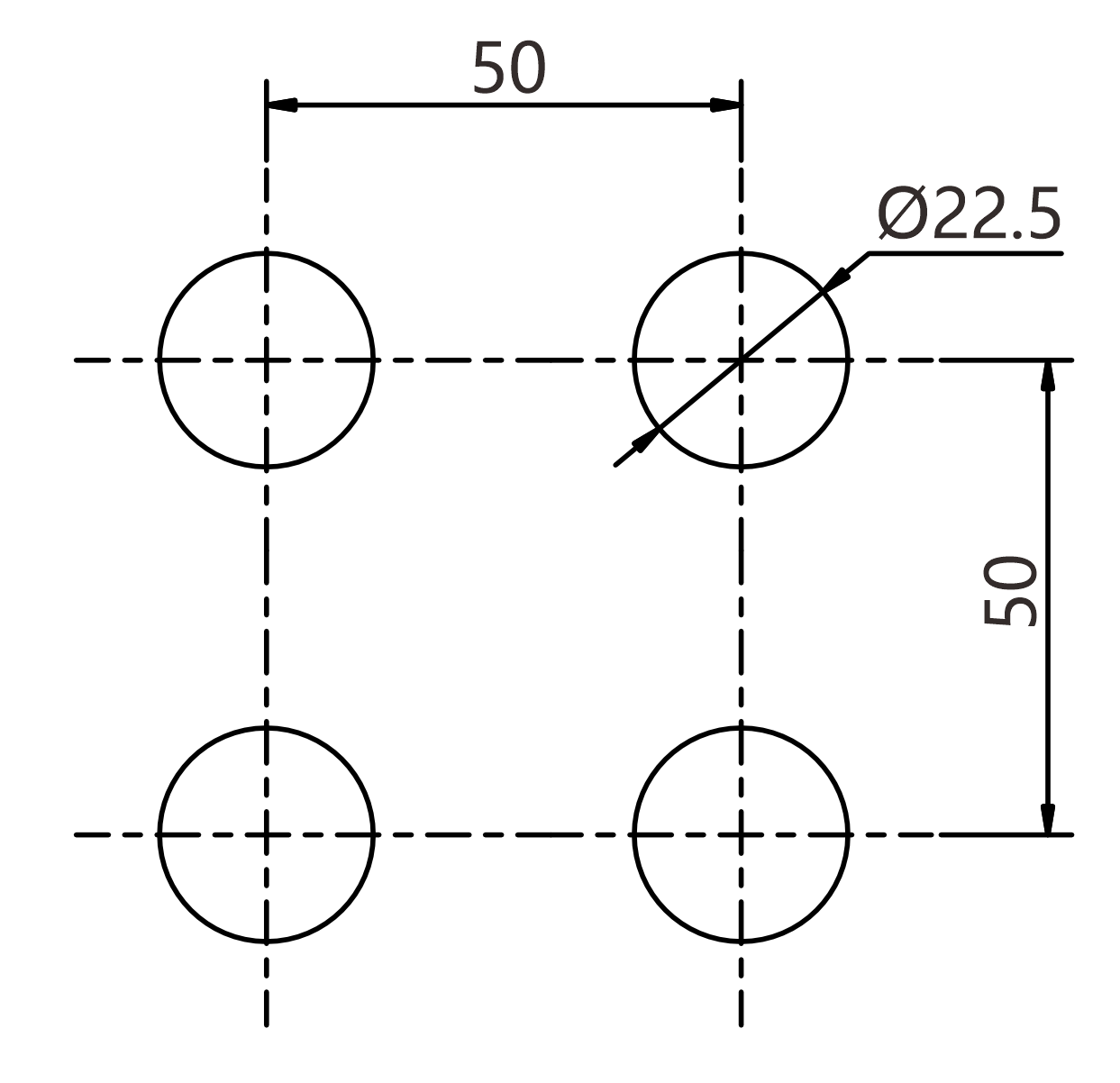

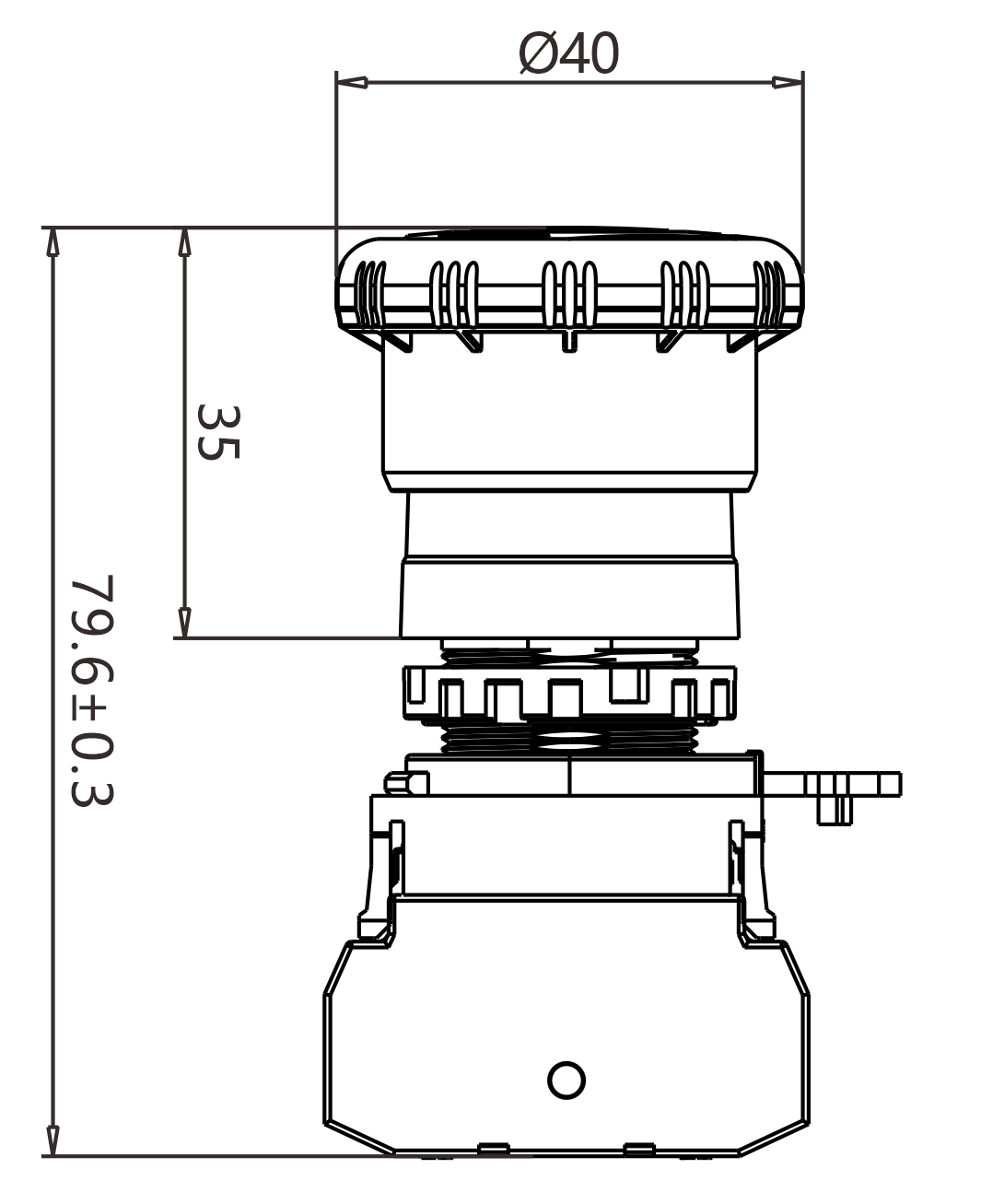

| E-Stop HQ-8102-NC TR | Red · Twist · IP65 | 2NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton HQ-2111G | Green · Momentary function · IP65 | 1NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Pushbutton HQ-2111R | Red · Momentary function · IP65 | 1NO+1NC | Circuit diagram Dimensional drawing Cutout drawing |
Housing
Front view
Side view
Housing and Dimensional Drawing
| Housing type | KEB-A3A |
|---|---|
| Dimensions (W × H × D) | 140 × 76 × 59,6 mm |
| Device openings | 3 |
| Cover colour | Flash Yellow |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
