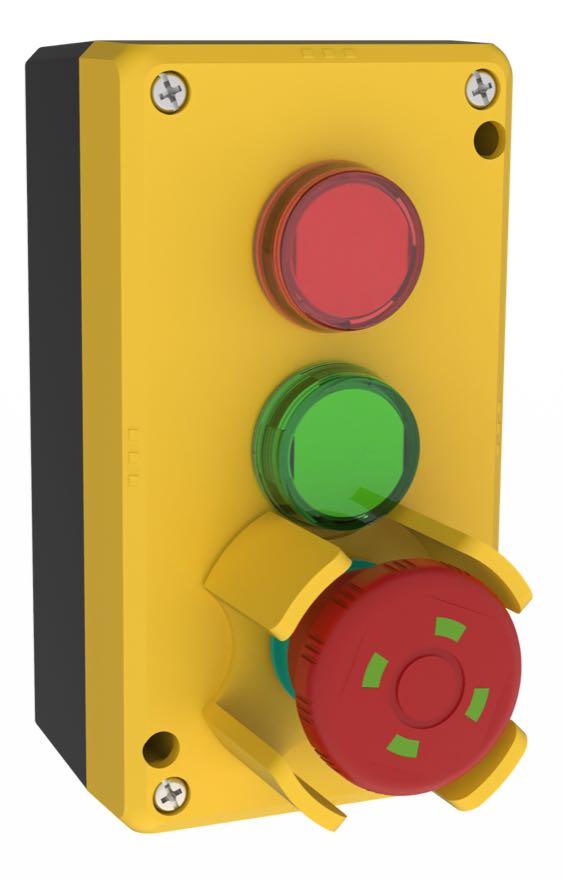

KEB-A Series · Lift Maintenance Box
KEB-A3A004
- EN 81-20 / EN 81-50
- Pit
With a 140 × 76 × 59,6 mm housing and 3 openings, the KEB-A3A004 (KEB-A) offers a modular mount for controls in accordance with EN 81-20 / EN 81-50.
| Series | KEB-A |
|---|---|
| Installation Location | Pit |
| Device Openings | 3 |
| Housing Dimensions (W × H × D) | 140 × 76 × 59,6 mm |
| Protection Degree | IP54 as standard, IP65 on request |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
- Free laser engraving from 25 pcs
- Custom assembly with special push buttons on request
Fitting
Ex-Works Fitting
Standard fitting of this design — 4 components with contact assignment and circuit diagram. Custom fittings are available on request.
| Device | Design | Contacts | Drawings |
|---|---|---|---|
| E-Stop HQ-8101-NC PV | Red · Pull&Push with vision · IP65 | 1NC | Circuit diagram Dimensional drawing Cutout drawing |
| Indicator HQ-1T0-URA2 | Red · IP65 | — | Circuit diagram Dimensional drawing Cutout drawing |
| Indicator HQ-1T0-UGA2 | Green · IP65 | — | Circuit diagram Dimensional drawing Cutout drawing |
| Guard JF22 | — | — |
Housing
Front view
Side view
Housing and Dimensional Drawing
| Housing type | KEB-A3A |
|---|---|
| Dimensions (W × H × D) | 140 × 76 × 59,6 mm |
| Device openings | 3 |
| Cover colour | Flash Yellow |
| Base colour | Black |
| Material | ABS |
| Flame class (UL 94) | HB |
Our services
Customisation straight from the factory
Free laser engraving
From 25 units we engrave labels, symbols and your company logo free of charge — permanently legible, with no stickers or pad printing.
Request engravingCustom assembly with special push buttons
On request we equip your maintenance box with special push buttons and customer-specific controls — fully assembled and tested ex works.
