KEB-B Series · Lift Maintenance Box
Download KEB maintenance box datasheet (PDF, 1.6 MB)

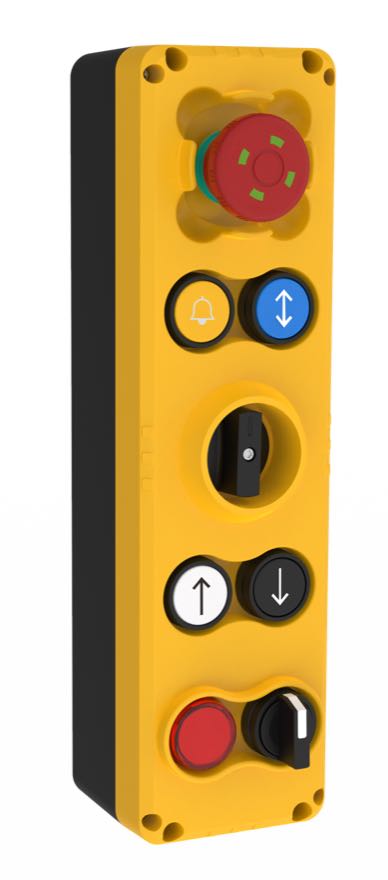

KEB-B8C001/EU
With a 162 × 76 × 56 mm housing and 8 openings, the KEB-B8C001/EU (KEB-B) offers a modular mount for controls in accordance with EN 81-20 / EN 81-50. The /EU version is intended for the European market.
| Series | KEB-B |
|---|---|
| Device Openings | 8 |
| Housing Dimensions (W × H × D) | 162 × 76 × 56 mm |
| Designed To | EN 81-20 / EN 81-50 · IEC 60947-5-1 · EN 60204-1 · EN 60529 |
| Fitting | freely configurable (14 device types, 7 power socket types) |
Configuration Options
Fit-out to your requirements
Devices (14)
-
HQ key switch 1‑0-2 -
HQ UP pushbutton -
HQ selector switch 1‑2 -
HQ red LED indicator light -
HQ green LED indicator light -
HQ flush-mount pushbutton, black -
HQ flush-mount pushbutton, green -
HQ emergency stop switch (GB/T 14048.1) -
HQ DOWN pushbutton -
HQ double-arrow button -
HQ blue LED indicator light -
HQ alarm button -
Signal device (buzzer/flashing light) -
Cam switch 1‑2 (normal/inspection mode)
Power Socket Types (7)
-
US power socket (KPS/US) -
UK power socket (KPS/UK) -
Swiss power socket (KPS/SW) -
French power socket (KPS/FR) -
Schuko power socket (KPS/EU) -
China/Australia power socket (KPS/CH) -
Brazilian power socket (KPS/BR)
More Models
More from the KEB-B series
Configure the KEB-B8C001/EU now
Set the fitting, power socket type and details in the configurator — or get in touch directly.
